Part Details | OPTICAL INSTRUMENT RETICLE ASSEMBLY
1240-00-394-3108 An optical element consisting of a polished optical glass disk to which is bonded a RETICLE, OPTICAL INSTRUMENT and a PRISM, OPTICAL INSTRUMENT. A right-hand and a left-hand assembly are used in an optical system to provide three dimensional vision of an object or target.
Alternate Parts: 1240003943108, 11727426, 1240-00-394-3108, 00-394-3108, 1240003943108, 003943108
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 12 | APR 05, 1974 | 00-394-3108 | 24164 ( RETICLE ASSEMBLY, OPTICAL INSTRUMENT ) |
REFERENCE DRAWINGS & PICTURES

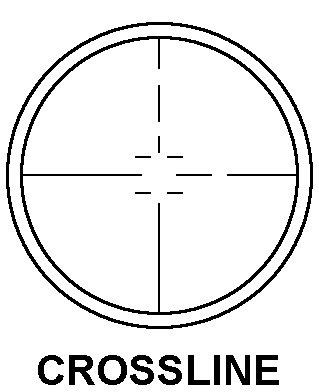

CROSSLINE
Cross Reference | NSN 1240-00-394-3108
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1240003943108 | A00AM | E.C.A ETABLISSEMENT CENTRALDESAPPROVISIONNEMENTS DES FORCES |
| 11727426 | 19200 | US ARMY ARDEC RDECOM |
Technical Data | NSN 1240-00-394-3108
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CROSSLINE |
| END ITEM IDENTIFICATION | M60 |
