Part Details | AIRCRAFT ACCESS COVER
1560-00-007-6618 An access cover which is an integral part of the airframe structure of an aircraft. Excludes COVER, ACCESS.
Alternate Parts: 14236168, 14-23616-8, 14236164, 14-23616-4, 14236168, 14-23616-8, 1560-00-007-6618, 00-007-6618, 1560000076618, 000076618
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | JUL 06, 1972 | 00-007-6618 | 51575 ( COVER, ACCESS, AIRCRAFT ) |
REFERENCE DRAWINGS & PICTURES

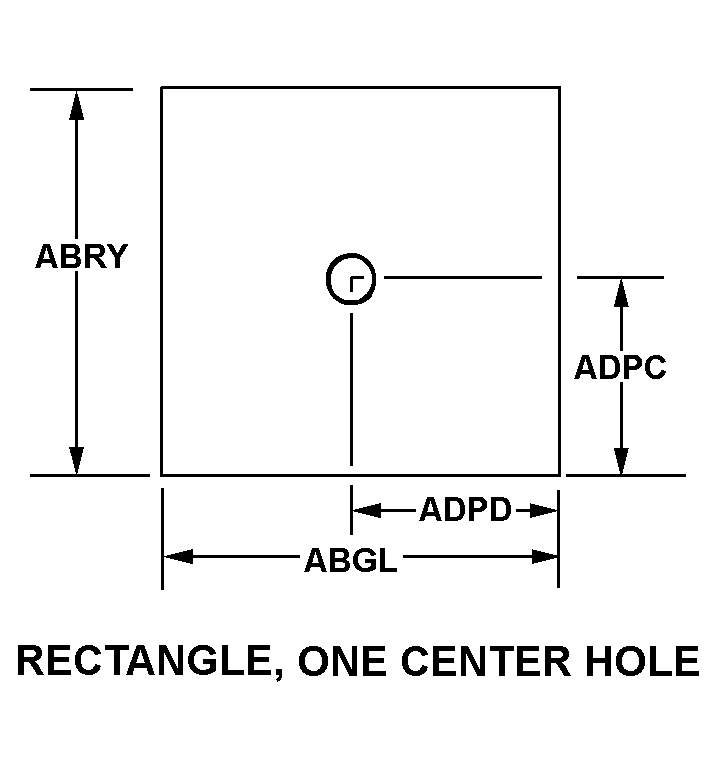

RECTANGLE, ONE CENTER HOLE
Cross Reference | NSN 1560-00-007-6618
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14-23616-8 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN AEROSPACE |
| 14-23616-4 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN AEROSPACE |
| 14-23616-8 | 0JRC1 | NORTHROP GRUMMAN TECHNICAL SERVICES,INC. |
Technical Data | NSN 1560-00-007-6618
| Characteristic | Specifications |
|---|---|
| PERIPHERAL SHAPE STYLE | 0 RECTANGLE, ONE CENTER HOLE |
| WIDTH | 4.600 INCHES NOMINAL |
| LENGTH | 7.300 INCHES NOMINAL |
| HOLE QUANTITY ALONG LENGTH | 10 |
| HOLE QUANTITY ALONG WIDTH | 4 |
| MATERIAL | ALUMINUM ALLOY 7075 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250 TO 12,COND T6 FED SPEC ALL MATERIAL RESPONSES |
| SECURING DEVICE TYPE | SPECIAL |
| END ITEM IDENTIFICATION | F-5 ACFT,INBOARD WING |
