Part Details | LINEAR ACTUATING CYLINDER ASSEMBLY
1650-00-160-4457 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.
Alternate Parts: CH002297, CH00229-7, 70967, 7096-7, 1650-00-160-4457, 00-160-4457, 1650001604457, 001604457
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | JAN 28, 1973 | 00-160-4457 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |
REFERENCE DRAWINGS & PICTURES
TWO HOLE
BEARING TYPE
BEARING TYPE

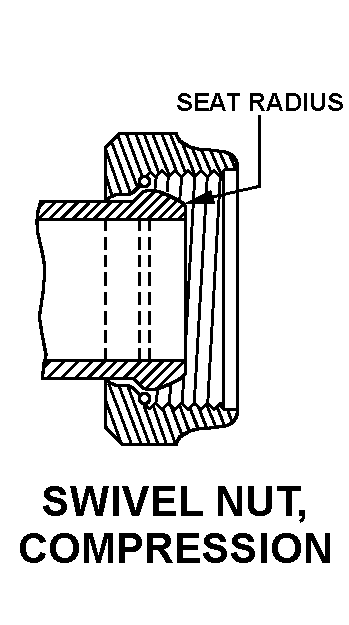

SWIVEL NUT, COMPRESSION
Cross Reference | NSN 1650-00-160-4457
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CH00229-7 | 81755 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
| 7096-7 | 06177 | PNEUDRAULICS, INC. |
Technical Data | NSN 1650-00-160-4457
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | SINGLE ACTING SINGLE CYLINDER |
| EXTENDED LENGTH | 7.070 INCHES NOMINAL |
| COMPRESSED LENGTH | 5.013 INCHES NOMINAL |
| BODY MATERIAL | ALUMINUM |
| INTEGRAL VALVE OPERATION METHOD | HYDRAULIC |
| FIRST PISTON ROD END STYLE | BEARING TYPE |
| PISTON ROD END SIMILARITY | NOT IDENTICAL |
| SECOND PISTON ROD END STYLE | BEARING TYPE |
| MOUNTING TYPE AND LOCATION | TONGUE PISTON ROD END |
| MOUNTING PROVISION | UNTHREADED MOUNTING HOLES |
| MOUNTING PROVISION ARRANGEMENT STYLE | TWO HOLE |
| PORT STYLE | SWIVEL NUT, COMPRESSION |
| PRESSURE RATING | 3000.0 POUNDS PER SQUARE INCH NOMINAL |
| FSC APPLICATION DATA | AIRCRAFT HYDRAULIC SYSTEM |
