Part Details | WEBBING STRAP
1680-00-115-5757 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.
Alternate Parts: 6507050002012, 65070-50002-012, 1680-00-115-5757, 00-115-5757, 1680001155757, 001155757
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | SEP 20, 1968 | 00-115-5757 | 20659 ( STRAP, WEBBING ) |
REFERENCE DRAWINGS & PICTURES

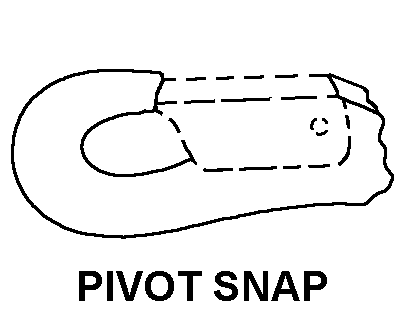

PIVOT SNAP
Cross Reference | NSN 1680-00-115-5757
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65070-50002-012 | 78286 | SIKORSKY AIRCRAFT CORPORATIONDBA SIKORSKY |
Technical Data | NSN 1680-00-115-5757
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYAMIDE |
| WIDTH | 2.000 INCHES NOMINAL |
| LENGTH | 90.000 INCHES NOMINAL |
| END TYPE | BOTH W/ATTACHMENTS |
| ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| COLOR | GRAY, FED STD 595, 36440 |
| END ATTACHMENT/FASTENING FACILITY | HOOK |
| FASTENED BUCKLE FEATURE | NOT INCLUDED |
| HOOK STYLE DESIGNATOR | PIVOT SNAP |
| HOOK CONNECTION TYPE | NONSWIVELING |
| HOOK QUANTITY | 2 |
| FASTENED HOOK FEATURE | NOT INCLUDED |
| FASTENED KEEPER FEATURE | NOT INCLUDED |
| FASTENED LOOP FEATURE | NOT INCLUDED |
| FASTENED RING FEATURE | NOT INCLUDED |
