Part Details | VEHICULAR SHIFTER FORK
2520-00-352-6692 An item having two or more prongs which may have transverse hole(s), slot(s), dowel pin(s), pad(s), in or on the end of each prong, to provide a means to accomplish the engagement or disengagement of gear(s), shaft(s), clutch, or the like. The opposite end has facilities for a shaft, lever, or the like. This item is designed to be used on vehicular applications such as automobiles, tanks, construction equipment, and the like.
Alternate Parts: 701158, 2520-00-352-6692, 00-352-6692, 2520003526692, 003526692
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-352-6692 | 52051 ( SHIFTER FORK, VEHICULAR ) |

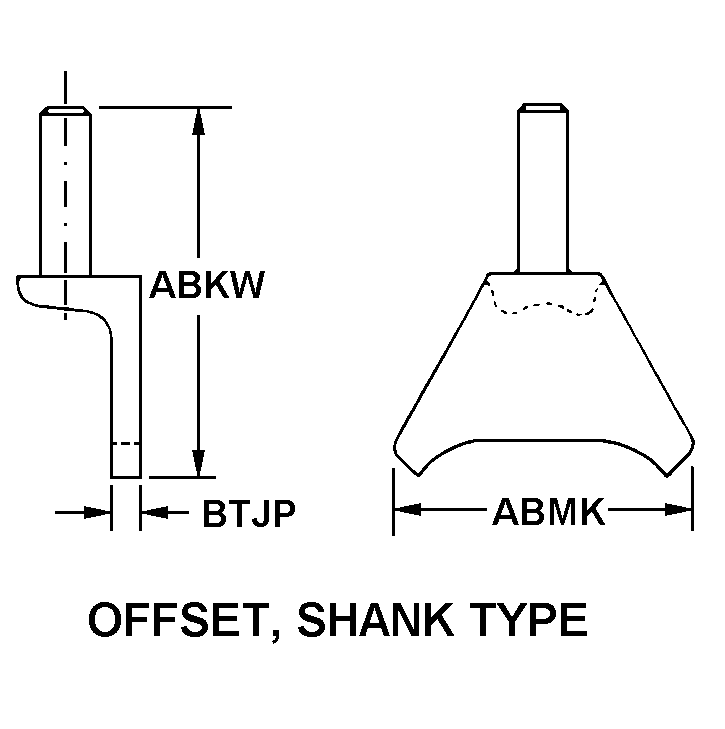

REFERENCE DRAWINGS & PICTURES
OFFSET, SHANK TYPE
Cross Reference | NSN 2520-00-352-6692
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 701158 | 23382 | FWD SEAGRAVE HOLDINGS, LP |
Technical Data | NSN 2520-00-352-6692
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | OFFSET, SHANK TYPE |
| SPECIAL FEATURES | AUXILIARY TRANSMISSION ASSEMBLY |
