Part Details | VALVE TAPPET ADJUSTING SCREW
2815-00-071-7959 An externally threaded screw-like device with a hexagon, square, slotted or any other type drive end. The other end may have a spherical ball, socket or other type of machined surface. It may have a concentric hole along the longitudinal centerline and a hole perpendicular to the axis joining the concentric hole for lubrication. It is specifically designed to be used as a means for adjusting engine poppet valve tappet clearances and may be furnished with a lock nut.
Alternate Parts: M1C46, 2815-00-071-7959, 00-071-7959, 2815000717959, 000717959
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JUL 20, 1967 | 00-071-7959 | 33266 ( SCREW, ADJUSTING, VALVE TAPPET ) |
REFERENCE DRAWINGS & PICTURES

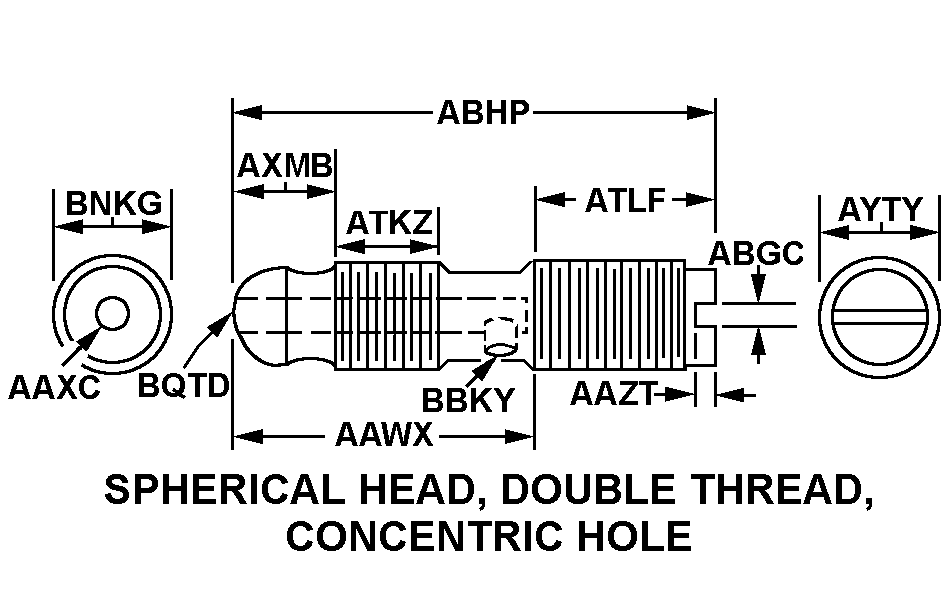

SPHERICAL HEAD, DOUBLE THREAD, CONCENTRIC HOLE
Cross Reference | NSN 2815-00-071-7959
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M1C46 | 03880 | DYNAPAC MFG INC |
Technical Data | NSN 2815-00-071-7959
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| STYLE DESIGNATOR | SPHERICAL HEAD, DOUBLE THREAD, CONCENTRIC HOLE |
| CONCENTRIC HOLE DEPTH | 0.950 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.110 INCHES NOMINAL |
| SLOT DEPTH | 0.100 INCHES NOMINAL |
| SLOT WIDTH | 0.068 INCHES NOMINAL |
| OVERALL LENGTH | 1.575 INCHES NOMINAL |
| FIRST END THREAD LENGTH | 0.273 INCHES NOMINAL |
| SECOND END THREAD LENGTH | 0.400 INCHES NOMINAL |
| END LENGTH | 0.464 INCHES NOMINAL |
| SMALLEST DIAMETER | 0.312 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.080 INCHES NOMINAL |
| END LARGEST DIAMETER | 0.365 INCHES NOMINAL |
| END SPHERICAL RADIUS | 0.162 INCHES NOMINAL |
| THREAD SIZE | 3/8-24 |
| THREAD SERIES | UNF |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
