Part Details | PRECOMBUSTION CHAMBER
2815-00-074-3523 An item specifically designed to be used as an auxiliary chamber in which combustible gases are ignited and combustion started ahead of the main combustion chamber of a diesel engine. It may have provisions for a glow plug or a wick to ignite the fuel mixture during cold weather starting.
Alternate Parts: 8S1523, 7M2699, 5S8474, IPD8S1528, IPD8S1523, IPD5S8474, 2815-00-074-3523, 00-074-3523, 2815000743523, 000743523
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1963 | 00-074-3523 | 33265 ( CHAMBER, PRECOMBUSTION ) |
REFERENCE DRAWINGS & PICTURES

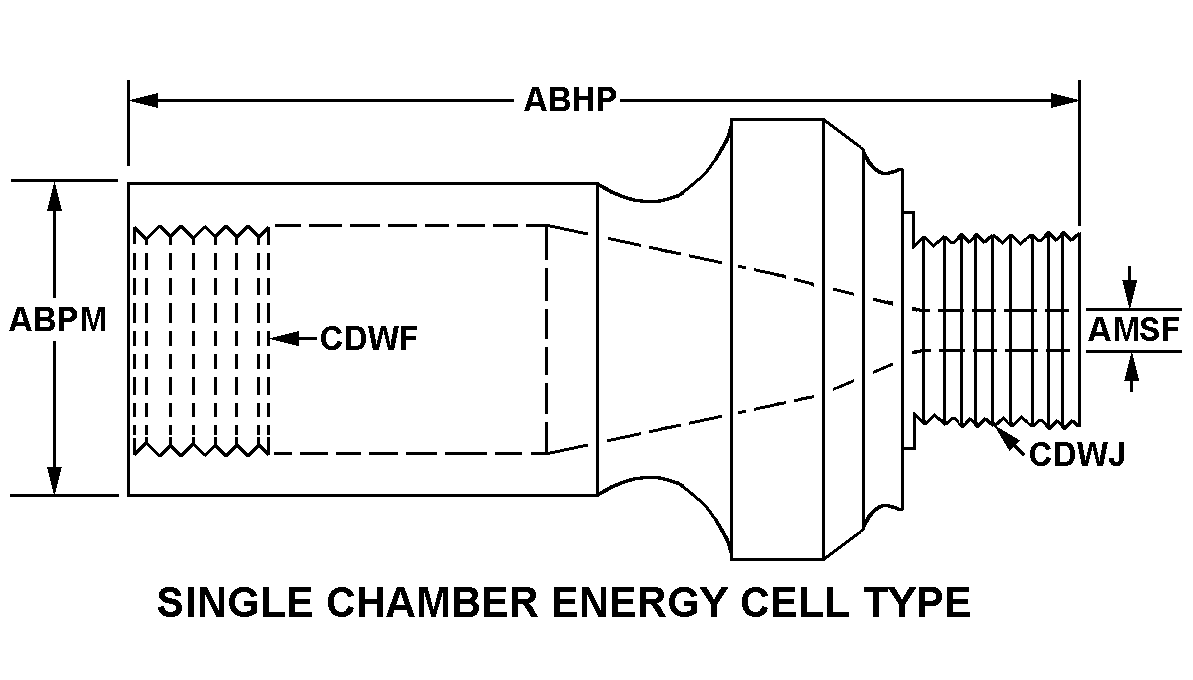

SINGLE CHAMBER ENERGY CELL TYPE
Cross Reference | NSN 2815-00-074-3523
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8S1523 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| 7M2699 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| 5S8474 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| IPD8S1528 | 55883 | INDUSTRIAL PARTS DEPOT, LLCDBA IPD |
| IPD8S1523 | 55883 | INDUSTRIAL PARTS DEPOT, LLCDBA IPD |
| IPD5S8474 | 55883 | INDUSTRIAL PARTS DEPOT, LLCDBA IPD |
Technical Data | NSN 2815-00-074-3523
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE CHAMBER ENERGY CELL TYPE |
| OVERALL LENGTH | 5.125 INCHES NOMINAL |
| BODY DIAMETER | 2.125 INCHES NOMINAL |
| ORIFICE DIAMETER | 0.375 INCHES NOMINAL |
| INTERNAL THREAD DESIGNATION | 1-14 UNS INTERNAL THD |
| EXTERNAL THREAD DESIGNATION | 5/8-12 UN,RH EXTERNAL THD |
