NSN 2815-00-075-7477

Part Details | INTERNAL COMBUSTION ENGINE PISTON

2815-00-075-7477

Alternate Parts: QPL11276, 5198839, 5197920, 5197549, MILE11276, MIL-E-11276, 5198839, 5197920, 5149234, PC5149234, 5198839, 2815-00-075-7477, 00-075-7477, 2815000757477, 000757477

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
28JAN 01, 196300-075-747716509 ( PISTON, INTERNAL COMBUSTION ENGINE )

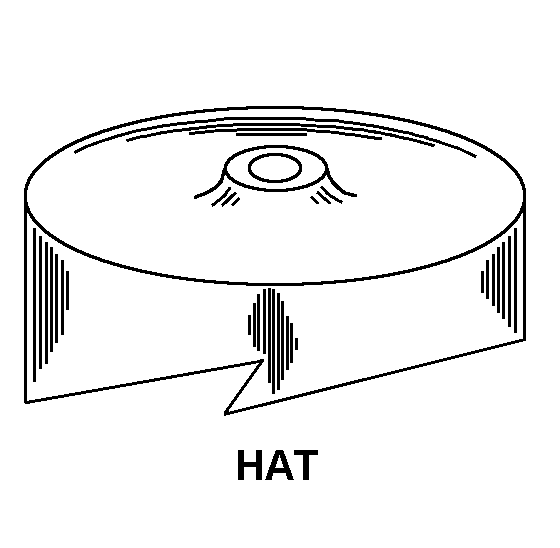

REFERENCE DRAWINGS & PICTURES

HAT

Cross Reference | NSN 2815-00-075-7477
Part Number Cage Code Manufacturer
QPL1127697403CECOM LR CENTER
519883924617GENERAL MOTORS CORP
519792024617GENERAL MOTORS CORP
519754924617GENERAL MOTORS CORP
MIL-E-1127681349MILITARY SPECIFICATIONSPROMULGATED BY MILITARY
519883972582MTU AMERICA INC.
519792072582MTU AMERICA INC.
514923472582MTU AMERICA INC.
PC5149234C7432POWER COMPONENTS (DEUTSCHLAND) GMBH
519883978325STURGES MANUFACTURING CO., INC.
Technical Data | NSN 2815-00-075-7477
Characteristic Specifications
MATERIAL STEEL
DIAMETER4.250 INCHES NOMINAL
OVERALL HEIGHT6.063 INCHES NOMINAL
SURFACE FINISH FINISHED
FINISHED SIZE DESIGNATION STANDARD
WEIGHT106.0 OUNCES
HEAD STYLE HAT
SKIRT TYPE SOLID
SKIRT BOTTOM CUTAWAY FEATURE NOT INCLUDED
RING GROOVE QUANTITY6
RING GROOVE WIDTH0.0938 INCHES AND 0.0938 INCHES AND 0.1875 INCHES AND 0.1875 INCHES AND 0.1875 INCHES AND 0.1875 INCHES
RING GROOVE DIAMETER3.875 INCHES AND 3.875 INCHES AND 3.813 INCHES AND 3.813 INCHES AND 3.813 INCHES AND 3.813 INCHES
OIL PASSAGE TYPE HOLE
CARBON GROOVE NOT INCLUDED
OIL GROOVE INCLUDED
DISTANCE FROM PIN HOLE CENTER TO EXTREME TOP3.500 INCHES NOMINAL
PIN HOLE BUSHING INCLUDED
PINHOLE DIAMETER1.6875 INCHES NOMINAL
DISTANCE BETWEEN PIN BOSSES1.875 INCHES NOMINAL
RETAINING RING GROOVE NOT INCLUDED
PIN NOT INCLUDED
PIN TYPE FOR WHICH DESIGNED FLOATING
RING NOT INCLUDED
