Part Details | VALVE TAPPET ADJUSTING SCREW
2815-00-110-3590 An externally threaded screw-like device with a hexagon, square, slotted or any other type drive end. The other end may have a spherical ball, socket or other type of machined surface. It may have a concentric hole along the longitudinal centerline and a hole perpendicular to the axis joining the concentric hole for lubrication. It is specifically designed to be used as a means for adjusting engine poppet valve tappet clearances and may be furnished with a lock nut.
Alternate Parts: 73658E, 73658-E, 2815-00-110-3590, 00-110-3590, 2815001103590, 001103590
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | AUG 09, 1968 | 00-110-3590 | 33266 ( SCREW, ADJUSTING, VALVE TAPPET ) |
REFERENCE DRAWINGS & PICTURES

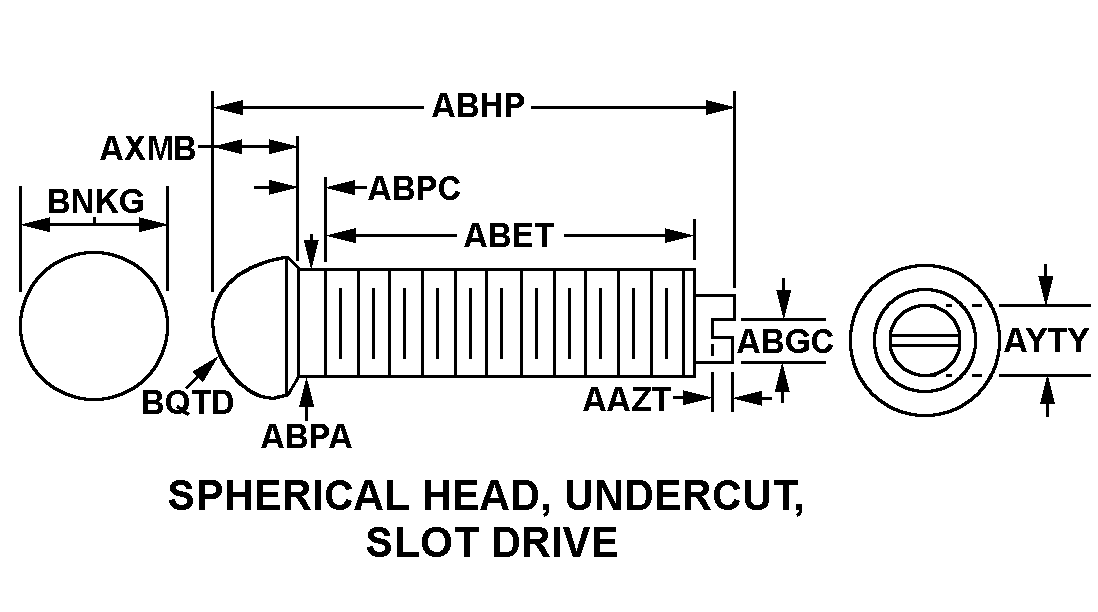

SPHERICAL HEAD, UNDERCUT, SLOT DRIVE
Cross Reference | NSN 2815-00-110-3590
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 73658-E | 64104 | DRESSER, INC.DIV DRESSER WAUKESHA |
Technical Data | NSN 2815-00-110-3590
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| CASEHARDENING INDICATOR | CASEHARDENED |
| STYLE DESIGNATOR | SPHERICAL HEAD, UNDERCUT, SLOT DRIVE |
| SLOT DEPTH | 0.105 INCHES NOMINAL |
| SLOT WIDTH | 0.080 INCHES NOMINAL |
| OVERALL LENGTH | 2.113 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.320 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.165 INCHES NOMINAL |
| END LENGTH | 0.385 INCHES NOMINAL |
| SMALLEST DIAMETER | 0.320 INCHES NOMINAL |
| END LARGEST DIAMETER | 0.500 INCHES NOMINAL |
| END SPHERICAL RADIUS | 0.250 INCHES NOMINAL |
| THREAD LENGTH | 1.425 INCHES |
| THREAD SIZE | 7/16-14 |
| THREAD SERIES | UNC |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
