Part Details | ELECTRICAL ENGINE STARTER
2920-00-127-4518 An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL.
Alternate Parts: CA45D2418, CA45D24-18, C5JZ11001A, C5JZ11001A, 2920-00-127-4518, 00-127-4518, 2920001274518, 001274518
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | DEC 29, 1972 | 00-127-4518 | 03577 ( STARTER, ENGINE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES
TRIANGULAR

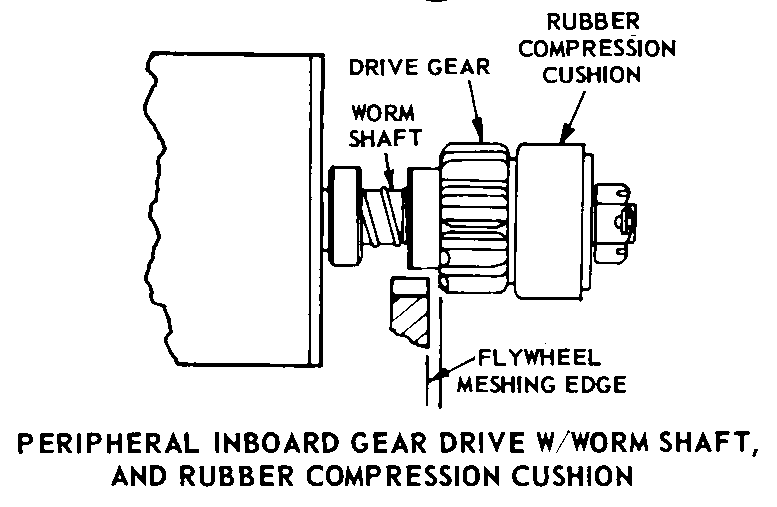

PERIPHERAL INBOARD GEAR DRIVE W/WORM SHAFT, AND RUBBER COMPRESSION CUSHION
Cross Reference | NSN 2920-00-127-4518
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CA45D24-18 | 63632 | DELPHI AUTOMOTIVE SYSTEMS, LLC |
| C5JZ11001A | 90927 | FORD MOTOR COFORD PARTS AND SERVICE DIV |
| C5JZ11001A | 23040 | FORD MOTOR COFORD PARTS AND SERVICE DIV |
Technical Data | NSN 2920-00-127-4518
| Characteristic | Specifications |
|---|---|
| ENGAGING MECHANISM STYLE | PERIPHERAL INBOARD GEAR DRIVE W/WORM SHAFT, AND RUBBER COMPRESSION CUSHION |
| MOUNTING FLANGE SHAPE STYLE | TRIANGULAR |
| MOUNTING HOLE DIAMETER | 0.438 INCHES NOMINAL |
| MOUNTING HOLE CIRCLE RADIUS | 3.000 INCHES NOMINAL |
| MOUNTING FLANGE ANGULAR DEVIATION IN DEG | 90.0 |
| VOLTAGE IN VOLTS | 24.0 |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| TERMINAL TYPE AND QUANTITY | 3 THREADED STUD |
