2920-00-185-9863 An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL.
Alternate Parts: MGD4113, MGD4113, 2920-00-185-9863, 00-185-9863, 2920001859863, 001859863
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | MAR 02, 1973 | 00-185-9863 | 03577 ( STARTER, ENGINE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES
TRIANGULAR

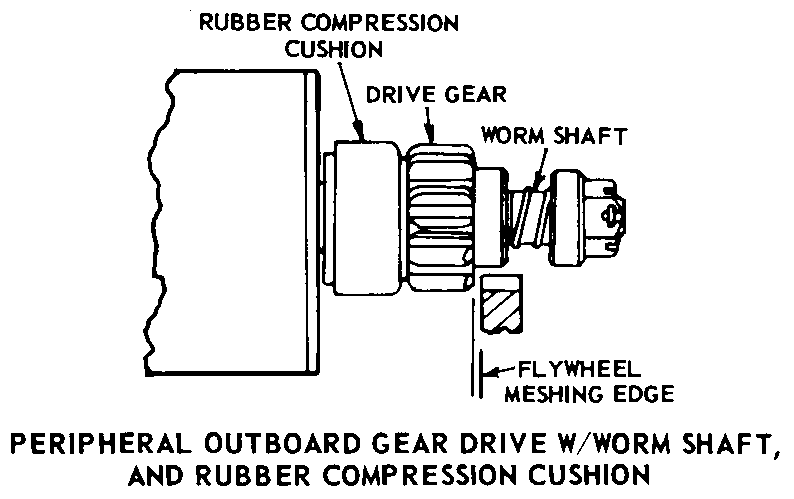

PERIPHERAL OUTBOARD GEAR DRIVE W/WORM SHAFT, AND RUBBER COMPRESSION CUSHION
Cross Reference | NSN 2920-00-185-9863
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MGD4113 | 68505 | PRESTOLITE ELECTRIC INC |
| MGD4113 | 24975 | PRESTOLITE ELECTRIC INCORPORATEDDBA PRESTOLITE ELECTRIC |
Technical Data | NSN 2920-00-185-9863
| Characteristic | Specifications |
|---|---|
| ENGAGING MECHANISM STYLE | PERIPHERAL OUTBOARD GEAR DRIVE W/WORM SHAFT, AND RUBBER COMPRESSION CUSHION |
| MOUNTING FLANGE SHAPE STYLE | 0 TRIANGULAR |
| MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 2.812 INCHES NOMINAL |
| BARREL OUTSIDE DIAMETER | 3.062 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN SHAFT CENTER AND MOUNTING HOLE | 1.969 INCHES NOMINAL |
| VOLTAGE IN VOLTS | 12.0 |
| SHAFT ROTATION DIRECTION | COUNTERCLOCKWISE |
| ARMATURE ACTUATION DEVICE TYPE | RELAY |
| ENGAGING MECHANISM TO ARMATURE POSITIONAL RELATIONSHIP | STRAIGHT |
| TERMINAL TYPE AND QUANTITY | 1 THREADED STUD |
| SPECIAL FEATURES | MOUNTING FLANGE PARALEL TO STARTER FRAME,ADDITIONAL MOUNTING EAR WELDED TO FRAME 90.0 DEGREES FROM FLANGE |
