2920-00-192-9181 A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT.
Alternate Parts: 514222400, 5142224-00, 2920-00-192-9181, 00-192-9181, 2920001929181, 001929181
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | MAR 06, 1970 | 00-192-9181 | 17311 ( GENERATOR, ENGINE ACCESSORY ) |
REFERENCE DRAWINGS & PICTURES

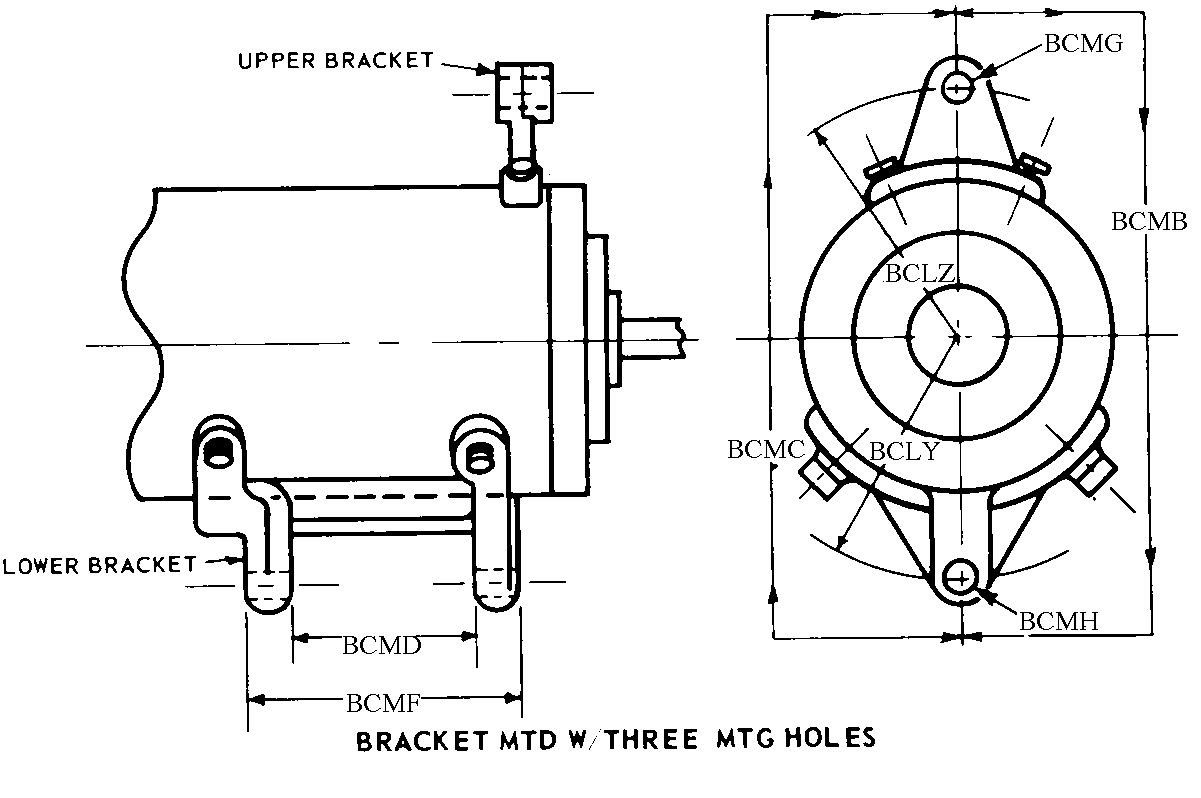

BRACKET MTD W/THREE MTG HOLES
STRAIGHT SHAFT END, THREADED
Cross Reference | NSN 2920-00-192-9181
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5142224-00 | 83299 | HYSTER-YALE GROUP, INC.DBA YALE MATERIALS HANDLING |
Technical Data | NSN 2920-00-192-9181
| Characteristic | Specifications |
|---|---|
| VOLTAGE IN VOLTS | 12.0 |
| RECTIFIER LOCATION | INTEGRAL |
| GROUNDING METHOD | INTERNAL |
| SHAFT ROTATION DIRECTION | B$C |
| MOUNTING STYLE | BRACKET MTD W/THREE MTG HOLES |
| DISTANCE BETWEEN SHAFT CENTER AND BOTTOM MOUNTING HOLE CENTER | 3.750 INCHES NOMINAL |
| DISTANCE BETWEEN SHAFT CENTER AND TOP MOUNTING HOLE CENTER | 3.500 INCHES NOMINAL |
| DISTANCE BETWEEN INSIDE SURFACES OF HINGE BRACKET | 2.625 INCHES NOMINAL |
| DISTANCE BETWEEN OUTSIDE SURFACES OF HINGE BRACKET | 3.375 INCHES NOMINAL |
| TOP MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| BOTTOM MOUNTING HOLE DIAMETER | 0.438 INCHES NOMINAL |
| ANGULAR DEVIATION OF FIRST HOLE FROM TOP CENTER IN DEG | 0.0 |
| ANGULAR DEVIATION OF SECOND HOLE FROM FIRST HOLE IN DEG | 0.0 |
| SHAFT DRIVE END STYLE | STRAIGHT SHAFT END, THREADED |
| THREAD LENGTH | 0.469 INCHES NOMINAL |
| SECOND STEP DIAMETER | 0.750 INCHES NOMINAL |
| UNTHREADED PORTION LENGTH | 0.750 INCHES NOMINAL |
| THREAD SERIES | UNF |
| THREAD DIAMETER | 0.312 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| FURNISHED ITEMS | E$DED |
