Part Details | IGNITION COIL
2920-00-195-4095 An item specifically designed to produce the high voltage necessary to provide a spark for igniting combustible mixtures, primarily in internal combustion engines.
Alternate Parts: 327192, 2920-00-195-4095, 00-195-4095, 2920001954095, 001954095
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JAN 01, 1963 | 00-195-4095 | 00303 ( COIL, IGNITION ) |
REFERENCE DRAWINGS & PICTURES

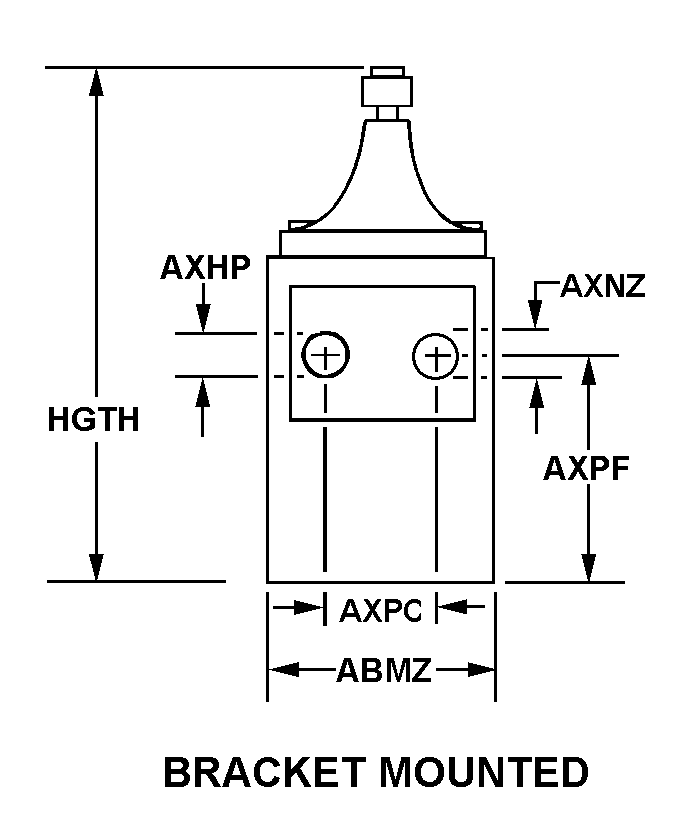

BRACKET MOUNTED
Cross Reference | NSN 2920-00-195-4095
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 327192 | 45320 | PACCAR GOVERNMENT GROUP COYARROW BAY OFFICE PK |
Technical Data | NSN 2920-00-195-4095
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BRACKET MOUNTED |
| DIAMETER | 3.170 INCHES NOMINAL |
| FIRST MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| SECOND MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND MOUNTING HOLES | 2.000 INCHES NOMINAL |
| DISTANCE FROM BASE OF COIL TO MOUNTING | 3.906 INCHES NOMINAL |
| HEIGHT | 8.578 INCHES NOMINAL |
| DC PRIMARY VOLTAGE RATING | 12.0 VOLTS NOMINAL |
| HIGH VOLTAGE TERMINAL TYPE | FRICTION |
| HIGH VOLTAGE TERMINAL QUANTITY | 1 |
| LOW VOLTAGE TERMINAL TYPE | THREADED STUD |
| LOW VOLTAGE TERMINAL QUANTITY | 2 |
| GROUND TERMINAL | NOT PROVIDED |
| INCLOSURE MATERIAL TYPE | METALLIC |
| FILLING MEDIUM | OIL |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND MOISTURE PROOF |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| RADIO INTERFERENCE SHIELDING | NOT PROVIDED |
| MOUNTING REMOVABILITY | NONREMOVABLE |
