Part Details | SPARK PLUG
2920-00-512-9162 An item containing two or more electrodes across which an electric spark is discharged to ignite a fuel and air mixture, primarily in internal combustion engines. Excludes GLOW PLUG; and ELECTRODE.
Alternate Parts: ED14, 61S1, 61S, ED9, ED14, Y18668, S86EX,PN899008, S86EX,P/N899008, ED14, 100737, 2920-00-512-9162, 00-512-9162, 2920005129162, 005129162
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JAN 01, 1963 | 00-512-9162 | 00294 ( SPARK PLUG ) |
REFERENCE DRAWINGS & PICTURES
ELECTRICALLY SHIELDED, FULL INSULATOR, GASKET SEAT

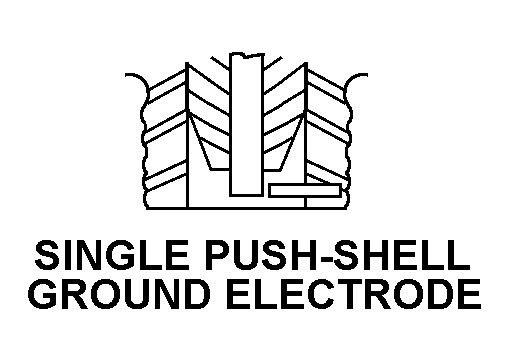

SINGLE PUSH-SHELL GROUND ELECTRODE
Cross Reference | NSN 2920-00-512-9162
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ED14 | 0AFL4 | CHAMPION AEROSPACE LLC |
| 61S1 | 0AFL4 | CHAMPION AEROSPACE LLC |
| 61S | 0AFL4 | CHAMPION AEROSPACE LLC |
| ED9 | 0AFL4 | CHAMPION AEROSPACE LLC |
| ED14 | 0B231 | CHAMPION AVIATION INCAUTOMOTIVE DIV |
| Y18668 | 64104 | DRESSER, INC.DIV DRESSER WAUKESHA |
| S86EX,P/N899008 | 70040 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| ED14 | 5P322 | JOINT AND CLUTCH SERVICE INC |
| 100737 | 81580 | MCCULLOCH CORP |
Technical Data | NSN 2920-00-512-9162
| Characteristic | Specifications |
|---|---|
| BODY STYLE | ELECTRICALLY SHIELDED, FULL INSULATOR, GASKET SEAT |
| REACH LENGTH | 0.500 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.875 INCHES NOMINAL |
| SEAT MAJOR DIAMETER | 0.938 INCHES NOMINAL |
| HEIGHT ABOVE MOUNTING SURFACE | 2.250 INCHES NOMINAL |
| TOP TO TERMINAL CONTACT DISTANCE | 1.000 INCHES MINIMUM AND 1.070 INCHES MAXIMUM |
| TOP TO SHIELD THREAD DISTANCE | 0.125 INCHES NOMINAL |
| SHIELD THREAD LENGTH | 0.250 INCHES NOMINAL |
| TERMINAL SLEEVE INSIDE DIAMETER | 0.378 INCHES MINIMUM AND 0.386 INCHES MAXIMUM |
| ELECTRODE STYLE | SINGLE PUSH-SHELL GROUND ELECTRODE |
| USAGE DESIGN | ENGINE OTHER THAN AIRCRAFT |
