Part Details | SPUR GEAR
3020-00-023-0116 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Alternate Parts: 513306, 513306, 513306, 3020-00-023-0116, 00-023-0116, 3020000230116, 000230116
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 01, 1963 | 00-023-0116 | 05466 ( GEAR, SPUR ) |
REFERENCE DRAWINGS & PICTURES

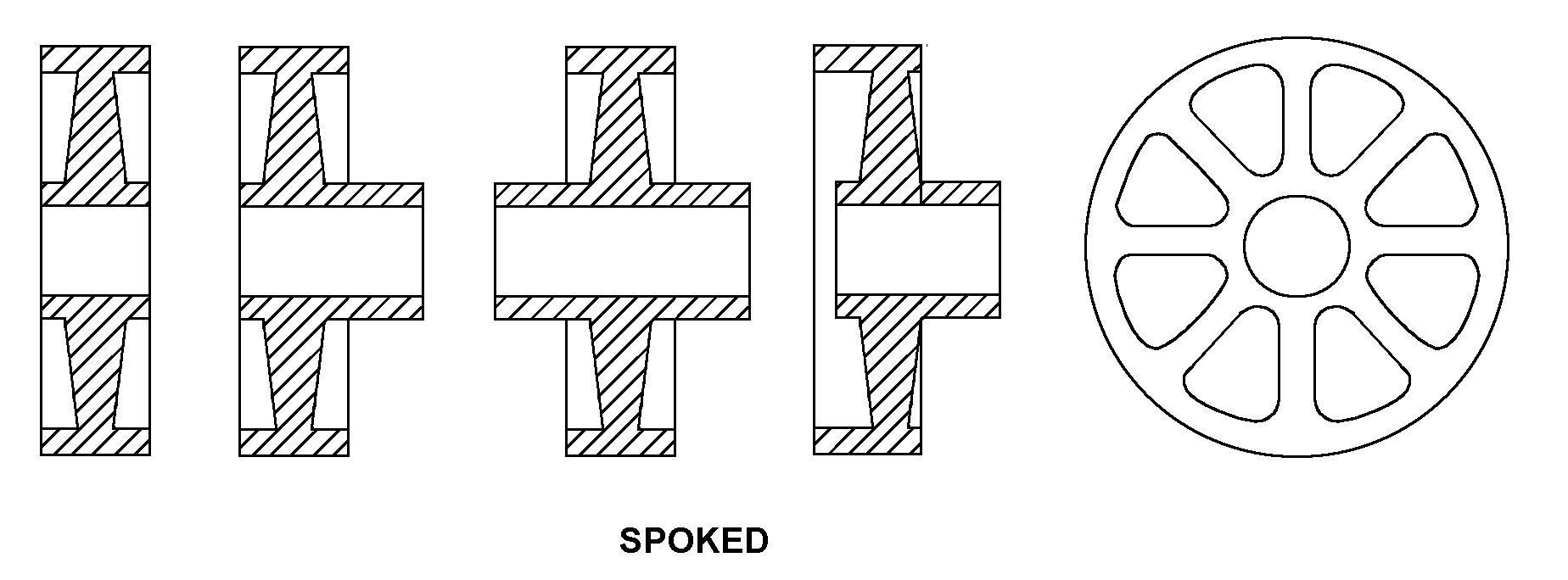

SPOKED
ONE PROTRUDING HUB, ONE FLUSH HUB
Cross Reference | NSN 3020-00-023-0116
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 513306 | 72599 | ALLIEDSIGNAL INCDBA ALLIED-SIGNAL AEROSPACE CO |
| 513306 | 70210 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 513306 | 64547 | HONEYWELL INTERNATIONAL INCDBA HONEYWELL |
Technical Data | NSN 3020-00-023-0116
| Characteristic | Specifications |
|---|---|
| TEETH QUANTITY | 142 |
| PRESSURE ANGLE | 20.0000 DEGREES |
| STYLE DESIGNATOR | ONE PROTRUDING HUB, ONE FLUSH HUB |
| PITCH DIAMETER | 1.7750 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 0.255 INCHES |
| NOMINAL OUTSIDE DIAMETER | 1.800 INCHES |
| FACE NOMINAL WIDTH | 0.100 INCHES |
| BODY STYLE | SPOKED |
