Part Details | MATCHED SET V BELTS
3030-00-096-9546 A factory matched set of two or more belts.
Alternate Parts: 1320350, A52422OE3V7102, A52422-OE-3V710-2, AA52422, A-A-52422, 23V710, 2-3V710, MILB52919, MIL-B-52919, 3030-00-096-9546, 00-096-9546, 3030000969546, 000969546
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | DEC 06, 1972 | 00-096-9546 | 19147 ( BELTS, V, MATCHED SET ) |
REFERENCE DRAWINGS & PICTURES

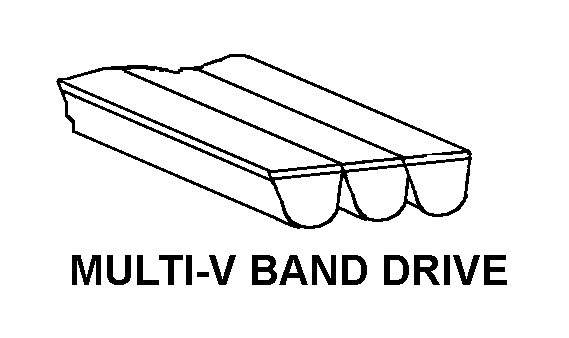

MULTI-V-BAND DRIVE
Cross Reference | NSN 3030-00-096-9546
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1320350 | 72233 | COUNTRY CATERERS BBQ INC.DBA COUNTRY CATERER'S USE CAGE CODE |
| A52422-OE-3V710-2 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| A-A-52422 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| 2-3V710 | 24161 | GATES CORP THEDBA GATES RUBBER CO THE |
| MIL-B-52919 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 3030-00-096-9546
| Characteristic | Specifications |
|---|---|
| STRENGTHENING FEATURE | SYNTHETIC CORD |
| ENVIRONMENTAL PROTECTION | HEAT RESISTANT AND OIL RESISTANT AND STATIC FREE |
| STYLE DESIGNATOR | MULTI-V-BAND DRIVE |
| SECTION QUANTITY | 3 |
| CROSS-SECTIONAL SIZE | 3V |
| NOMINAL WIDTH | 0.375 INCHES |
| NOMINAL EFFECTIVE OUTSIDE LENGTH | 71.000 INCHES |
| PERFORMANCE TYPE | STANDARD CAPACITY |
| BELT QUANTITY | 2 |
| END ITEM IDENTIFICATION | W/S: NIMITZ CLASS CVN; OLIVER PERRY CLASS FFG; SAFEGUARD CLASS ARS |
