Part Details | POSITIVE DRIVE BELT
3030-00-106-1827 A flat internally toothed belt or a round belt with protuding pins, designed to engage with corresponding teeth or corresponding grooves on the sprockets over which they run.
Alternate Parts: 5307501, 530750-1, 530750, FA95, 34910008D, 10229163, 32GBF95E, 32GBF-95-E, 3030-00-106-1827, 00-106-1827, 3030001061827, 001061827
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JUL 12, 1968 | 00-106-1827 | 19541 ( BELT, POSITIVE DRIVE ) |
REFERENCE DRAWINGS & PICTURES

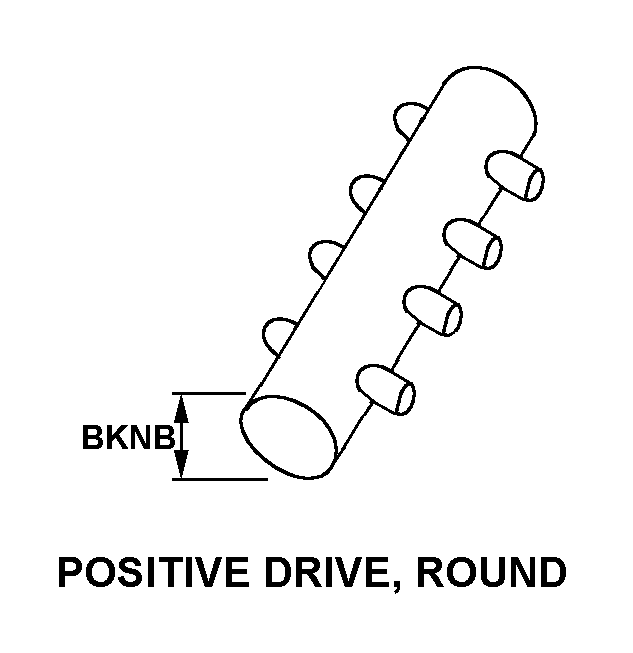

POSITIVE DRIVE, ROUND
Cross Reference | NSN 3030-00-106-1827
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 530750-1 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
| 530750 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
| FA95 | 00141 | ROLLER BEARING COMPANY OF AMERICA,INC. |
| 34910008D | Z8143 | THALES AUSTRALIA AVIONICS |
| 10229163 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 32GBF-95-E | 29440 | W. M. BERG INC |
Technical Data | NSN 3030-00-106-1827
| Characteristic | Specifications |
|---|---|
| STRENGTHENING FEATURE | STEEL CORD |
| STYLE DESIGNATOR | POSITIVE DRIVE, ROUND |
| NOMINAL DIAMETER | 0.094 INCHES |
| NOMINAL WIDTH | 0.203 INCHES |
| NOMINAL PITCH LENGTH | 9.327 INCHES |
| DRIVE TYPE AND QUANTITY | 95 PIN |
| NOMINAL PITCH DISTANCE | 0.098 INCHES |
| SPECIAL FEATURES | COLOR BLUE,BELT DIAMETER 0.094 IN. |
