Part Details | FLAT BELTING
3030-01-086-6576
Alternate Parts: NP50280278TM1308D48F, NP5028027-8TM-1308D/48F, 220B 18X132 12VANNER SLOPED, 220B 1/8X1/32 1/2VANNER SLOPED, 3030-01-086-6576, 01-086-6576, 3030010866576, 010866576
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | DEC 01, 1979 | 01-086-6576 | 06441 ( BELTING, FLAT ) |
REFERENCE DRAWINGS & PICTURES

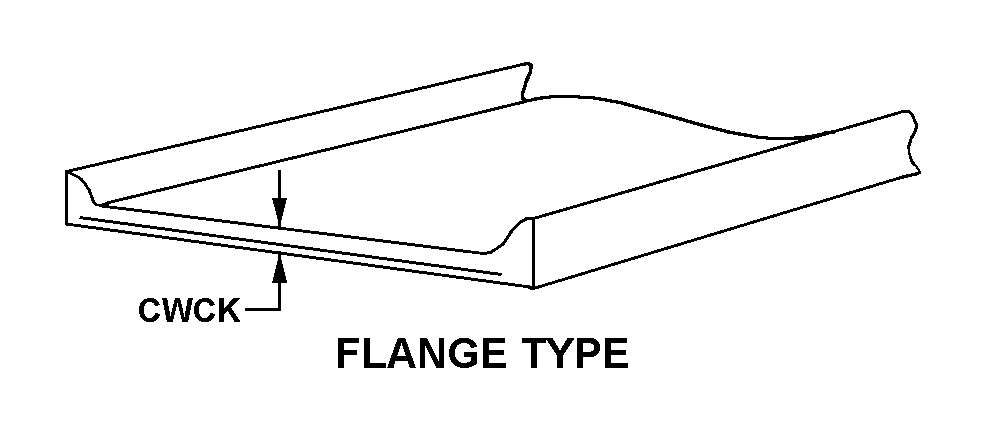

FLANGE TYPE
Cross Reference | NSN 3030-01-086-6576
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NP5028027-8TM-1308D/48F | 05643 | BARBER-GREENE CO |
| 220B 1/8X1/32 1/2VANNER SLOPED | 1DM34 | FABREEKA INTL INC |
Technical Data | NSN 3030-01-086-6576
| Characteristic | Specifications |
|---|---|
| PLY QUANTITY | 3 |
| STYLE DESIGNATOR | FLANGE TYPE |
| NOMINAL THICKNESS | 0.296 INCHES |
| NOMINAL WIDTH | 18.000 INCHES |
| USAGE DESIGN | CONVEYING MATERIALS |
| SPECIAL FEATURES | FABLON 220B; VANNER SLOPED EDGE 0.500 IN. HEIGHT; E/I IS AMOBILE ASPHALT PLANT; WHEN ORDERING BELT P/N MUST ALSO INCLUDE LENGTH AND E/I SERIAL NUMBER |
