Part Details | PAWL
3040-00-133-5778 A catching device of various shapes and cross sections, which permits motion in only one direction. Designed to engage the teeth or notches of a sector, quadrant, ratchet wheel, or the like. Item is so pivoted that the angle of approach to the interdental engagement causes it to rest more firmly as the reverse load is increased. Item may be spring actuated to cause engagement. Excludes CAM (as modified).
Alternate Parts: 11593696, 3040-00-133-5778, 00-133-5778, 3040001335778, 001335778
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | DEC 30, 1968 | 00-133-5778 | 22101 ( PAWL ) |
REFERENCE DRAWINGS & PICTURES

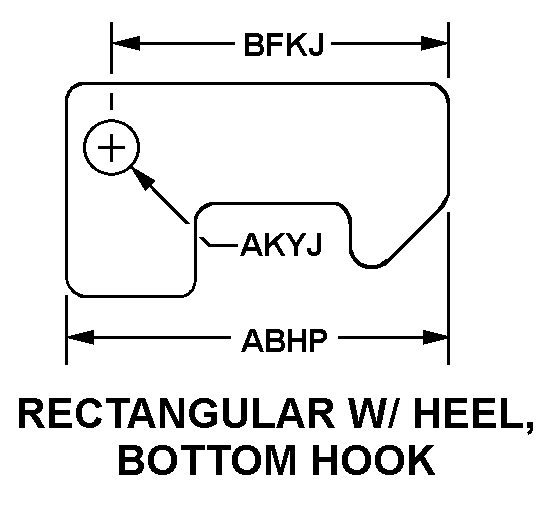

RECTANGULAR W/HEEL, BOTTOM HOOK
Cross Reference | NSN 3040-00-133-5778
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11593696 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 3040-00-133-5778
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RECTANGULAR W/HEEL, BOTTOM HOOK |
| OVERALL LENGTH | 4.500 INCHES NOMINAL |
| PIVOT PIN HOLE DIAMETER | 0.516 INCHES NOMINAL |
| LENGTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT | 4.250 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.562 INCHES NOMINAL |
| SPECIAL FEATURES | CASEHARDENED;DEPTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT:0.500 IN.NOM;LENGTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT:2.516 IN.NOM;MATERIAL DOCUMENT AND CLASSIFICATION:STEEL COMP 1025;SURFACE FINISH:ENAMEL,TT-E-529 |
