Part Details | HUB CLAMP
3040-00-146-7898 An item designed to be mounted around the extended hub portion of a gear, wheel, or the like, to retain it securely to a shaft by compressing the slotted hub body. The item may also be used to clamp around a shaft, or the like, to prevent end motion or to retain it in position. Its compression quality is derived from a screw(s) or bolt(s) which may be a part of the item of supply. For items designed to secure directly to a shaft by use of setscrews, pins, or the like, see COLLAR, SHAFT. Excludes CLAMP, LOOP.
Alternate Parts: 7902212001, 790-2212-001, 3040-00-146-7898, 00-146-7898, 3040001467898, 001467898
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | SEP 12, 1971 | 00-146-7898 | 27781 ( CLAMP, HUB ) |
REFERENCE DRAWINGS & PICTURES
THREADED

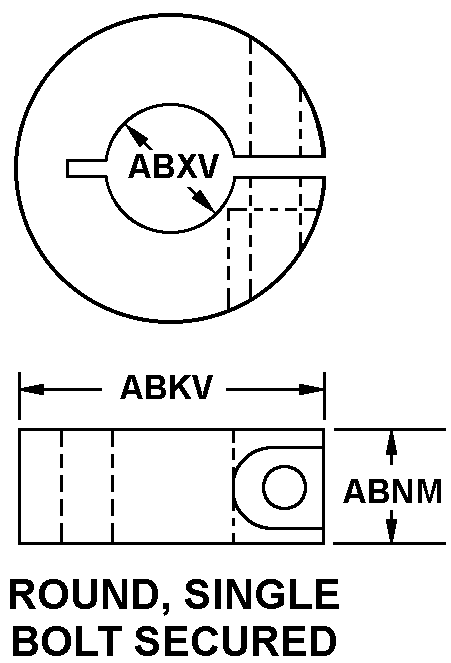

ROUND, SINGLE BOLT SECURED
Cross Reference | NSN 3040-00-146-7898
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 790-2212-001 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 3040-00-146-7898
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225 TO 8, ALLOY 6061, T6 FED SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | ROUND, SINGLE BOLT SECURED |
| OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| THICKNESS | 0.375 INCHES NOMINAL |
| BORE DIAMETER | 0.3750 INCHES NOMINAL |
| CLAMP SECURING HOLE STYLE | THREADED |
| PLAIN HOLE DIAMETER | 0.1470 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 0.2340 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.5000 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
