Part Details | SHAFT COLLAR
3040-00-147-0312 An item designed to be mounted around a shaft to limit axial movement of the shaft and/or its assembled parts. It is secured directly to the shaft by use of a setscrew(s), pin(s), or the like, which may be a part of the item of supply. A pilot hole drilled in or through the wall(s) for drilling and pinning at application may be considered a method of securing. Solid items have a bearing surface on one or both end(s) perpendicular to the axis. For items designed to be mounted around the extended hub portion of a mounted item on a shaft or clamp around a shaft, see CLAMP, HUB. See also BEARING, SLEEVE; BUSHING, SLEEVE; SPACER, SLEEVE; and COUPLING, SHAFT, RIGID.
Alternate Parts: S810B, SG3869PC19, SG1351PC19, SG1348PC19, S810B, SG3869PC19, SG1351PC19, SG1348PC19, 3040-00-147-0312, 00-147-0312, 3040001470312, 001470312
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 01, 1963 | 00-147-0312 | 13743 ( COLLAR, SHAFT ) |
REFERENCE DRAWINGS & PICTURES

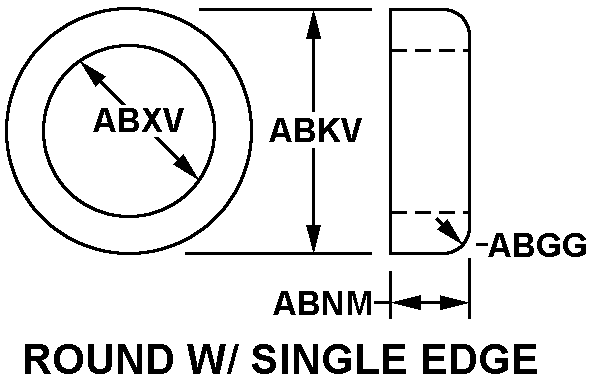

ROUND W/ SINGLE EDGE
Cross Reference | NSN 3040-00-147-0312
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S810B | 59180 | IMO INDUSTRIES INC.DBA IMO PUMP DIVISION |
| SG3869PC19 | 59180 | IMO INDUSTRIES INC.DBA IMO PUMP DIVISION |
| SG1351PC19 | 59180 | IMO INDUSTRIES INC.DBA IMO PUMP DIVISION |
| SG1348PC19 | 59180 | IMO INDUSTRIES INC.DBA IMO PUMP DIVISION |
| S810B | 16712 | SIEMENS DEMAG DELAVALTURBOMACHINERY, INC. |
| SG3869PC19 | 16712 | SIEMENS DEMAG DELAVALTURBOMACHINERY, INC. |
| SG1351PC19 | 16712 | SIEMENS DEMAG DELAVALTURBOMACHINERY, INC. |
| SG1348PC19 | 16712 | SIEMENS DEMAG DELAVALTURBOMACHINERY, INC. |
Technical Data | NSN 3040-00-147-0312
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-890, CLASS C MIL SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | ROUND W/ SINGLE EDGE |
| OUTSIDE DIAMETER | 1.548 INCHES MINIMUM AND 1.553 INCHES MAXIMUM |
| THICKNESS | 0.562 INCHES NOMINAL |
| BORE DIAMETER | 1.0152 INCHES MINIMUM AND 1.0157 INCHES MAXIMUM |
| RADIUS | 0.125 INCHES NOMINAL |
| KEYWAY QUANTITY | 1 |
| INTERNAL KEYWAY WIDTH | 0.124 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY | 0.567 INCHES MINIMUM AND 0.577 INCHES MAXIMUM |
