Part Details | HUB CLAMP
3040-00-152-6570 An item designed to be mounted around the extended hub portion of a gear, wheel, or the like, to retain it securely to a shaft by compressing the slotted hub body. The item may also be used to clamp around a shaft, or the like, to prevent end motion or to retain it in position. Its compression quality is derived from a screw(s) or bolt(s) which may be a part of the item of supply. For items designed to secure directly to a shaft by use of setscrews, pins, or the like, see COLLAR, SHAFT. Excludes CLAMP, LOOP.
Alternate Parts: 135C3641P1, 135C3641, 3040-00-152-6570, 00-152-6570, 3040001526570, 001526570
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | AUG 19, 1972 | 00-152-6570 | 27781 ( CLAMP, HUB ) |
REFERENCE DRAWINGS & PICTURES
THREADED

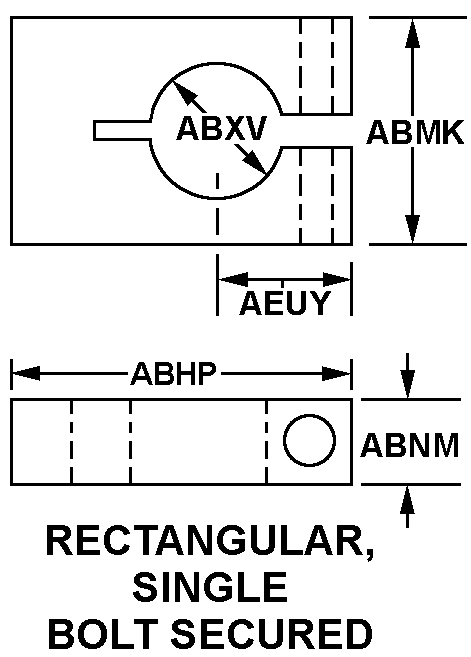

RECTANGULAR, SINGLE BOLT SECURED
Cross Reference | NSN 3040-00-152-6570
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 135C3641P1 | 89954 | BAE SYSTEMS CONTROLS INC. |
| 135C3641 | 89954 | BAE SYSTEMS CONTROLS INC. |
Technical Data | NSN 3040-00-152-6570
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225 TO 8, ALLOY 6061, T651 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | RECTANGULAR, SINGLE BOLT SECURED |
| OUTSIDE DIAMETER | 1.0600 INCHES NOMINAL |
| THICKNESS | 1.510 INCHES NOMINAL |
| OVERALL LENGTH | 1.510 INCHES NOMINAL |
| OVERALL WIDTH | 0.6300 INCHES NOMINAL |
| BORE DIAMETER | 0.5050 INCHES NOMINAL |
| DISTANCE FROM BORE CENTERLINE TO END | 0.520 INCHES NOMINAL |
| CLAMP SECURING HOLE STYLE | THREADED |
| PLAIN HOLE DIAMETER | 0.1670 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 0.3120 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.0800 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
