Part Details | THRUST BALL BEARING
3110-00-052-6471 An antifriction bearing having a ball rolling element, designed to resist axial thrust, or to support an axial load. Excludes BEARING, BALL, PIVOT.
Alternate Parts: 1019, 1019, 3110-00-052-6471, 00-052-6471, 3110000526471, 000526471
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-052-6471 | 00019 ( BEARING, BALL, THRUST ) |
REFERENCE DRAWINGS & PICTURES

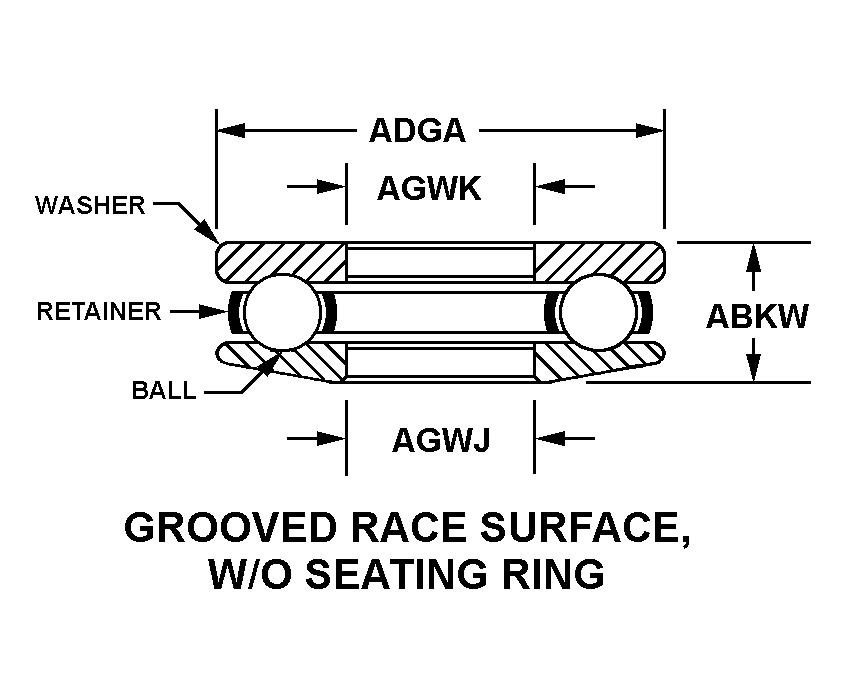

GROOVED RACE SURFACE, W/O SEATING RING
Cross Reference | NSN 3110-00-052-6471
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1019 | 43766 | SKF INDUSTRIES INCNICE BEARING PRODUCTS DIV |
| 1019 | 52676 | SKF USA INC. |
Technical Data | NSN 3110-00-052-6471
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | GROOVED RACE SURFACE, W/O SEATING RING |
| OVERALL HEIGHT | 1.3750 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 4.4680 INCHES NOMINAL |
| BORE SMALLEST DIAMETER | 2.0310 INCHES NOMINAL |
| LARGEST BORE DIAMETER | 2.0311 INCHES NOMINAL |
| SURFACE FINISH | GROUND |
| ALIGNMENT TYPE | RIGID |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | SINGLE |
