Part Details | SELF-ALIGNING ROLLER BEARING
3110-00-053-2943 An antifriction bearing having a cylindrical rolling element and one spherical raceway which will adjust to varying degrees of shaft and/or support misalignment without damage to the raceways and permits the full rating of the bearing to be utilized.
Alternate Parts: 2435321PC30, 2435321PC30, 230750CCC1W33VE554E, 230/750CCC1W33VE554E, 230750MCC1W510, 230-750MCC1W510, 750SD30W45F1, 750SD30-W45-F1, 230750W45060S090, 230/750W45060S090, 230W33W45BR60S90, 230/W33W45BR60S90, 230750YMBW33W45C6, 230-750YMBW33W45C6, 750SD30W45060S090, 2435321PC30, 230750YMBW507C08C6, 230/750YMBW507C08C6, 230750YMBW45060S090, 230/750YMBW45060S090, 230750YMBW33W45C6, 230/750YMBW33W45C6, 230750W33W45BR60S90, 230/750W33W45BR60S90, 230W33W45BR60S90, 230/W33W45BR60S90, 750W33W45BR60S90, 750SL30W45060S090, 750SL30-W45-060S090, 3110-00-053-2943, 00-053-2943, 3110000532943, 000532943
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | MAY 20, 1967 | 00-053-2943 | 00016 ( BEARING, ROLLER, SELF-ALIGNING ) |

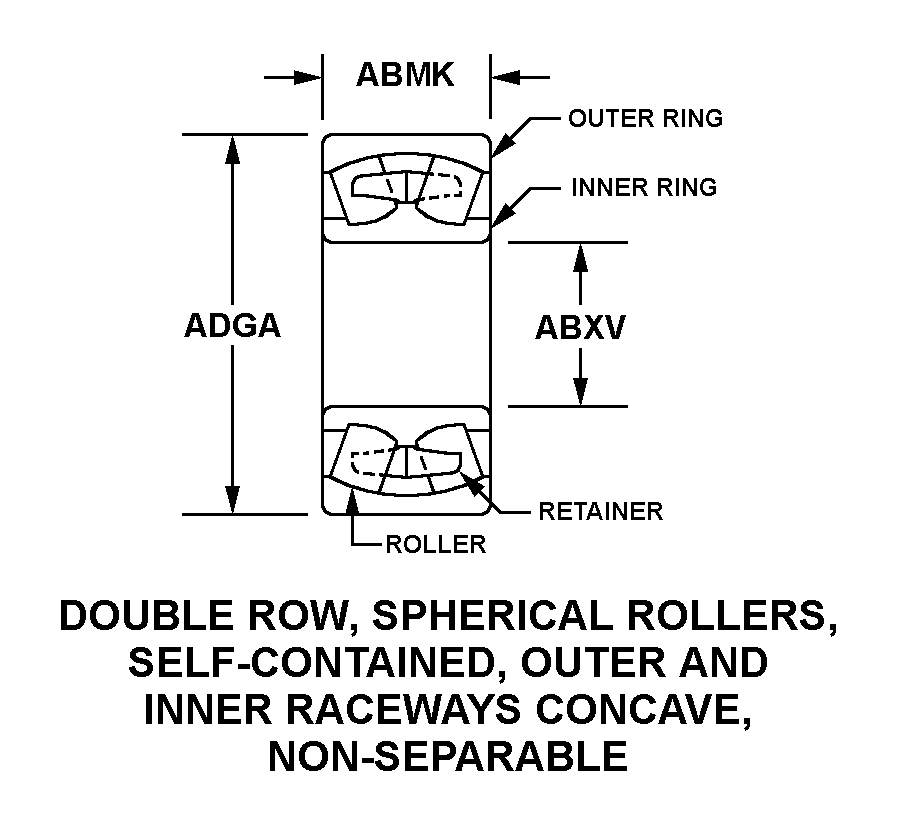

REFERENCE DRAWINGS & PICTURES
DOUBLE ROW, SPHERICAL ROLLERS, SELF-CONTAINED, OUTER AND INNER RACEWAYS CONCAVE, NON-SEPARABLE
Cross Reference | NSN 3110-00-053-2943
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2435321PC30 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 2435321PC30 | 52676 | SKF USA INC. |
| 230/750CCC1W33VE554E | 52676 | SKF USA INC. |
| 230-750MCC1W510 | 52676 | SKF USA INC. |
| 750SD30-W45-F1 | 60380 | TIMKEN AEROSPACE, INCDBA TORRINGTON PRODUCT |
| 230/750W45060S090 | 60380 | TIMKEN AEROSPACE, INCDBA TORRINGTON PRODUCT |
| 230/W33W45BR60S90 | 60380 | TIMKEN AEROSPACE, INCDBA TORRINGTON PRODUCT |
| 230-750YMBW33W45C6 | 60380 | TIMKEN AEROSPACE, INCDBA TORRINGTON PRODUCT |
| 750SD30W45060S090 | 60380 | TIMKEN AEROSPACE, INCDBA TORRINGTON PRODUCT |
| 2435321PC30 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| 230/750YMBW507C08C6 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| 230/750YMBW45060S090 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| 230/750YMBW33W45C6 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| 230/750W33W45BR60S90 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| 230/W33W45BR60S90 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| 750W33W45BR60S90 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| 750SL30-W45-060S090 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
Technical Data | NSN 3110-00-053-2943
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE ROW, SPHERICAL ROLLERS, SELF-CONTAINED, OUTER AND INNER RACEWAYS CONCAVE, NON-SEPARABLE |
| OVERALL WIDTH | 250.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 750.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1090.0 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| INTERNAL CLEARANCE | R0.0060 INCHES MINIMUM AND R0.0090 INCHES MAXIMUM |
| FEATURES PROVIDED | LUBRICATION HOLE AND LUBRICATION GROOVE |
| SPECIAL FEATURES | TAPPED HOLES IN FACE OF OUTER RING |
