Part Details | CYLINDRICAL ROLLER BEARING
3110-00-054-3637 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: BR906, BR90-6, SB24072, SB2407-2, 3110-00-054-3637, 00-054-3637, 3110000543637, 000543637
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | MAY 30, 1967 | 00-054-3637 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

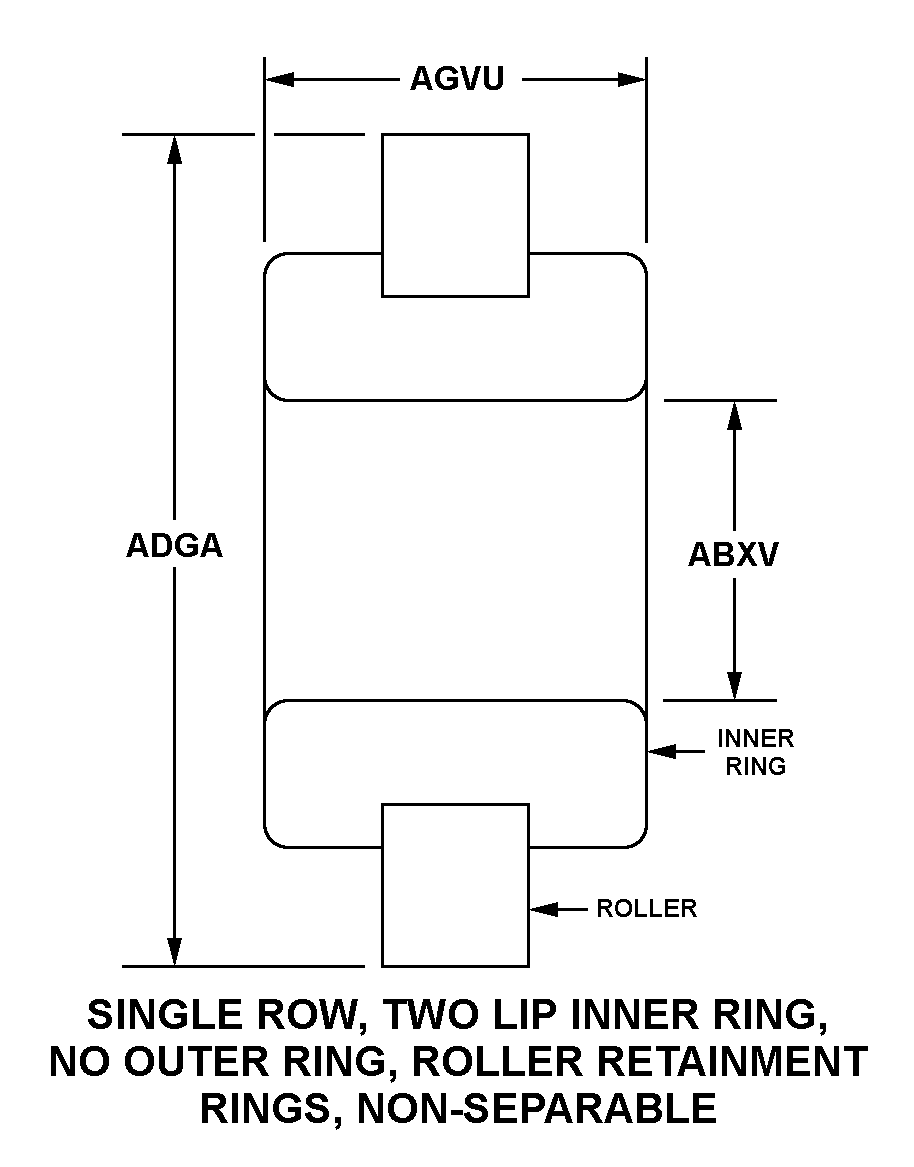

SINGLE ROW, TWO LIP INNER RING, NO OUTER RING, ROLLER RETAINMENT RINGS, NON-SEPARABLE
Cross Reference | NSN 3110-00-054-3637
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BR90-6 | 39317 | MCGILL MANUFACTURING COMPANY INCUSE CAGE CODE 92563 FOR CATALOGING. |
| SB2407-2 | 78286 | SIKORSKY AIRCRAFT CORPORATIONDBA SIKORSKY |
Technical Data | NSN 3110-00-054-3637
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE ROW, TWO LIP INNER RING, NO OUTER RING, ROLLER RETAINMENT RINGS, NON-SEPARABLE |
| BORE DIAMETER | 1.6195 INCHES MINIMUM AND 1.6200 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOCATING FEATURE | NONLOCATING |
| SPECIAL FEATURES | STABILIZED FOR OPERATION AT M65 DEG TO D350 DEG F LUBRICATION GROOVE 3/64 IN. DEPTH BY 3/8 IN. W LOCATED ID CENTER OF INNER RING 6 LUBRICATION HOLES 3/16 IN. DIA EQUALLY SPACED IN LUBRICATION GROOVE 6 GROOVES 0.030 IN. MAX DEPTH BY 1/8 IN. W EQUALLY SPACED ON BOTH FACES |
| TEST DATA DOCUMENT | 81349-MILI6868 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
