Part Details | BEARING BALL RETAINER
3110-00-079-2922 A frame or inclosure which spaces and retains the rolling elements of a BEARING, BALL (as modified).
Alternate Parts: 5315531, 531553-1, 3110-00-079-2922, 00-079-2922, 3110000792922, 000792922
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | DEC 08, 1967 | 00-079-2922 | 00032 ( RETAINER, BALL, BEARING ) |
REFERENCE DRAWINGS & PICTURES

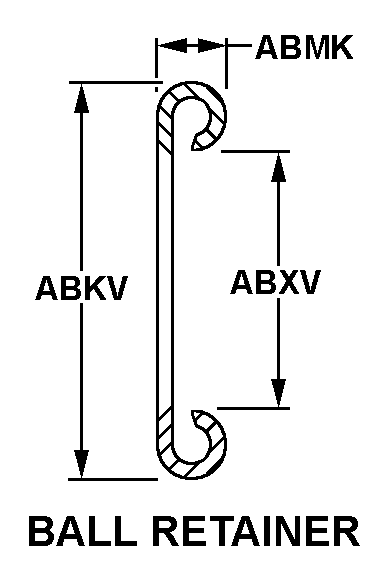

BALL RETAINER
Cross Reference | NSN 3110-00-079-2922
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 531553-1 | 70210 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 3110-00-079-2922
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BALL RETAINER |
| OUTSIDE DIAMETER | 2.3950 INCHES MINIMUM AND 2.4050 INCHES MAXIMUM |
| OVERALL WIDTH | 0.7350 INCHES MINIMUM AND 0.7700 INCHES MAXIMUM |
| BORE DIAMETER | 1.5650 INCHES MINIMUM AND 1.5750 INCHES MAXIMUM |
| RETAINER FABRICATION METHOD | MACHINED |
| RETAINER PIECE QUANTITY | 1 |
