Part Details | BEARING RETAINING PLATE
3110-00-091-7306 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Alternate Parts: 231808, 231808, 3110-00-091-7306, 00-091-7306, 3110000917306, 000917306
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-091-7306 | 22293 ( PLATE, RETAINING, BEARING ) |
REFERENCE DRAWINGS & PICTURES
FLAT W/APERTURE
VERTICAL CENTERLINE

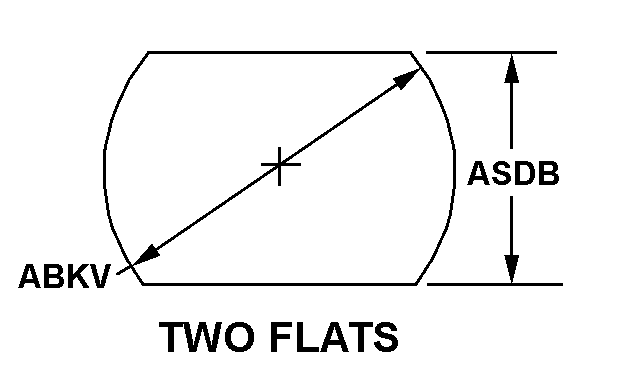

TWO FLATS
Cross Reference | NSN 3110-00-091-7306
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 231808 | 07187 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 231808 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
Technical Data | NSN 3110-00-091-7306
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TWO FLATS |
| OUTSIDE DIAMETER | 1.375 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 1.000 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | FLAT W/APERTURE |
| APERTURE DIAMETER | 0.750 INCHES NOMINAL |
| OVERALL THICKNESS | 0.0641 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.140 INCHES NOMINAL |
| MOUNTING HOLE ARRANGEMENT STYLE | 5 VERTICAL CENTERLINE |
| BOLT CIRCLE HOLE QUANTITY | 2 |
| MOUNTING BOLT CIRCLE DIAMETER | 1.125 INCHES NOMINAL |
