Part Details | ANNULAR BALL BEARING
3110-00-145-8599 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: SP29669, 3110-00-145-8599, 00-145-8599, 3110001458599, 001458599
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | SEP 04, 1971 | 00-145-8599 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

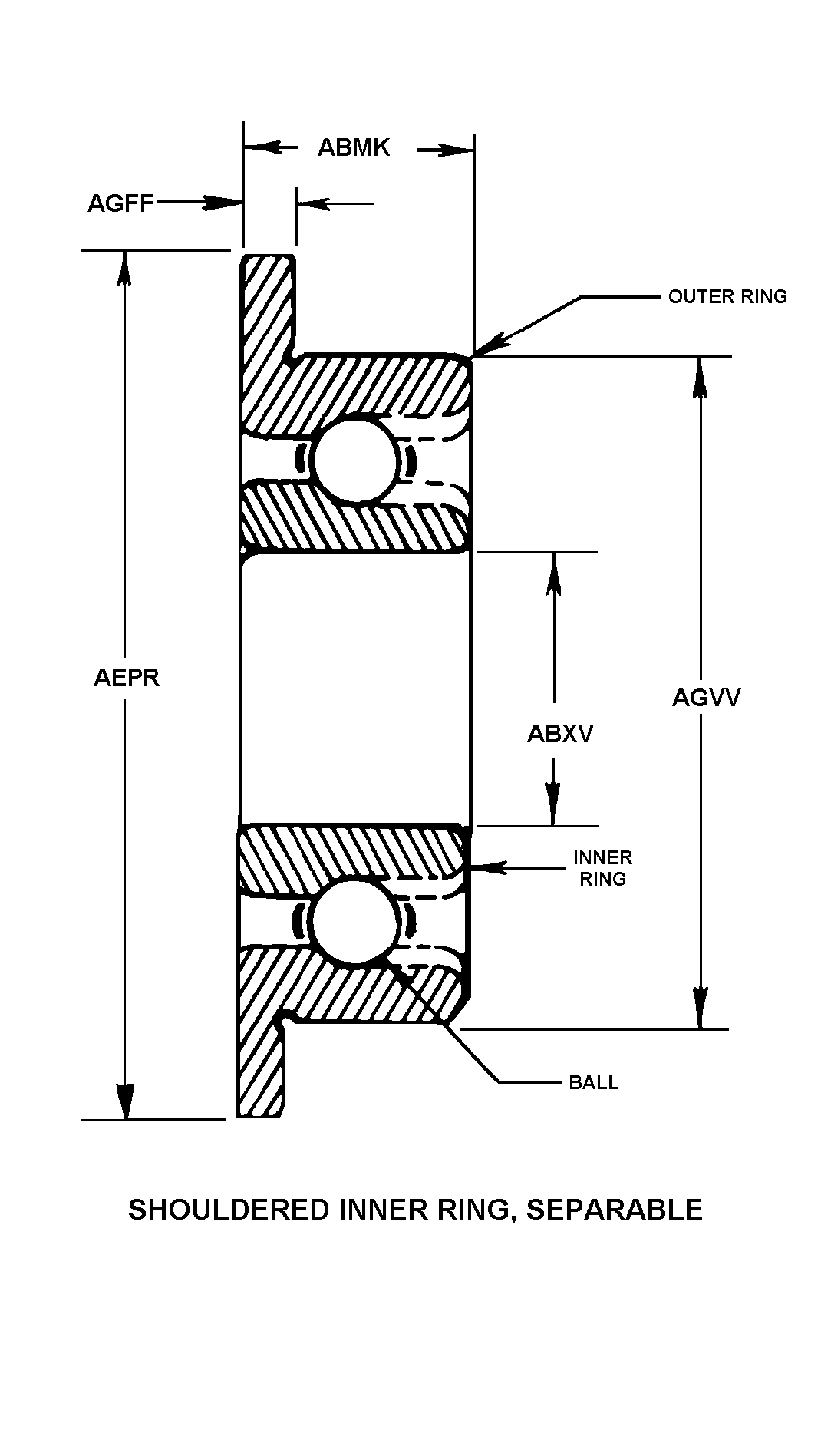

SHOULDERED INNER RING, SEPARABLE
Cross Reference | NSN 3110-00-145-8599
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SP29669 | 10237 | CADILLAC GAGE TEXTRON INC. |
Technical Data | NSN 3110-00-145-8599
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SHOULDERED INNER RING, SEPARABLE |
| OVERALL WIDTH | 0.2800 INCHES NOMINAL |
| BORE DIAMETER | 0.3800 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.9700 INCHES NOMINAL |
| OUTER RING OUTSIDE DIAMETER | 0.8800 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | UNGROUND |
| LOAD DIRECTION | RADIAL |
