Part Details | CYLINDRICAL ROLLER BEARING
3110-00-150-0402 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: 9685M49P07, 9685M49P03, R1830E121, 3110-00-150-0402, 00-150-0402, 3110001500402, 001500402
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | OCT 08, 1971 | 00-150-0402 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

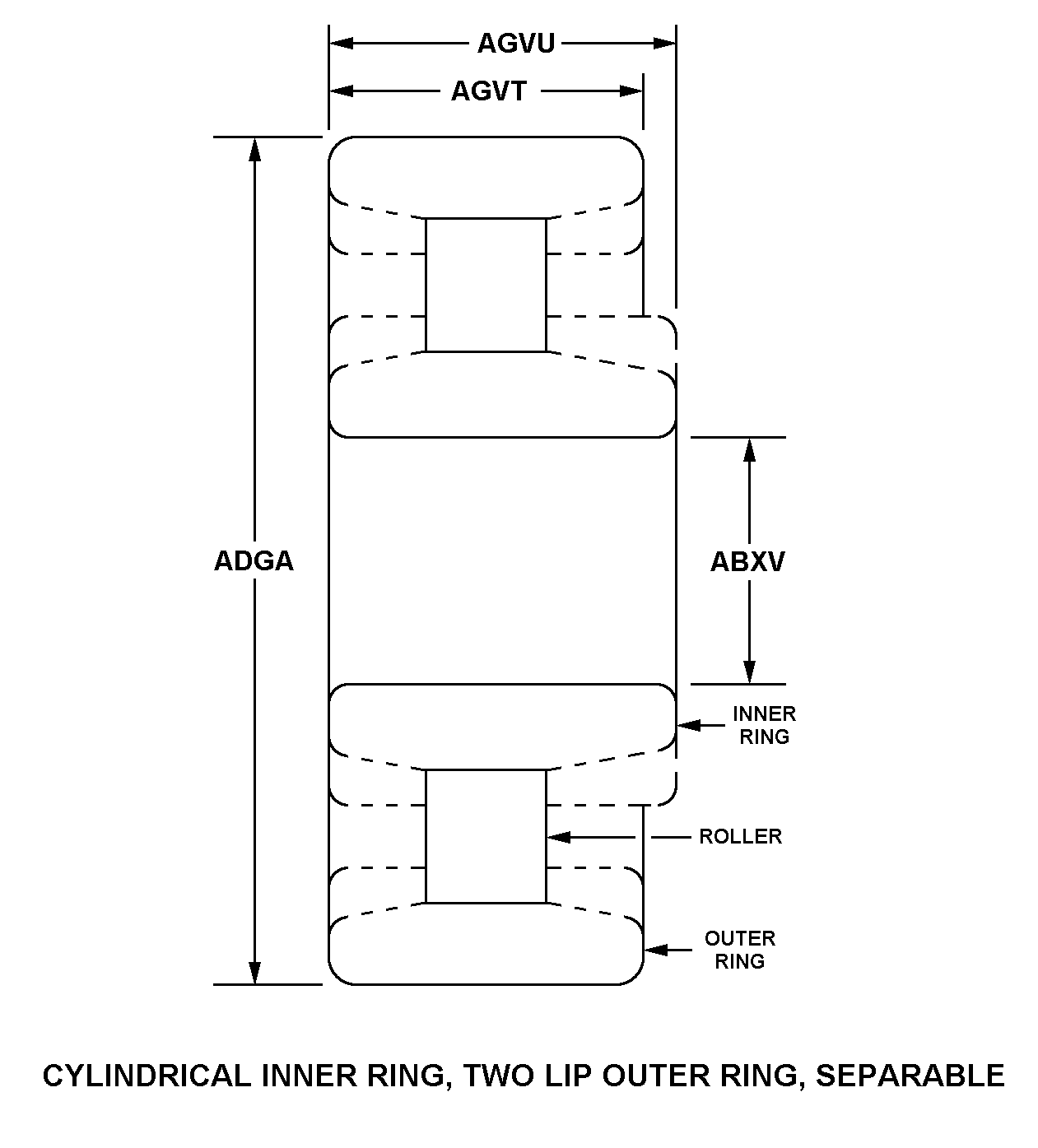

CYLINDRICAL INNER RING, TWO LIP OUTER RING, SEPARABLE
Cross Reference | NSN 3110-00-150-0402
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9685M49P07 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
| 9685M49P03 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
| R1830E121 | 38443 | SKF USA INC.DBA SKF AEROENGINE NORTH AMERICA |
Technical Data | NSN 3110-00-150-0402
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CYLINDRICAL INNER RING, TWO LIP OUTER RING, SEPARABLE |
| BORE DIAMETER | 6.1813 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 7.5474 INCHES NOMINAL |
| OUTER RING WIDTH | 0.8100 INCHES NOMINAL |
| INNER RING WIDTH | 1.5020 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL CLEARANCE | R0.0025 INCHES MINIMUM AND R0.0030 INCHES MAXIMUM |
| END ITEM IDENTIFICATION | C-5A ACFT |
