NSN 3110-00-151-8176

Part Details | ANNULAR BALL BEARING

3110-00-151-8176 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Alternate Parts: 517, 709692, 532633, 517, SRT8074, CS1498, 517, 517, S453686, S453686, 3110-00-151-8176, 00-151-8176, 3110001518176, 001518176

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
31JAN 01, 196100-151-817600014 ( BEARING, BALL, ANNULAR )
REFERENCE DRAWINGS & PICTURES

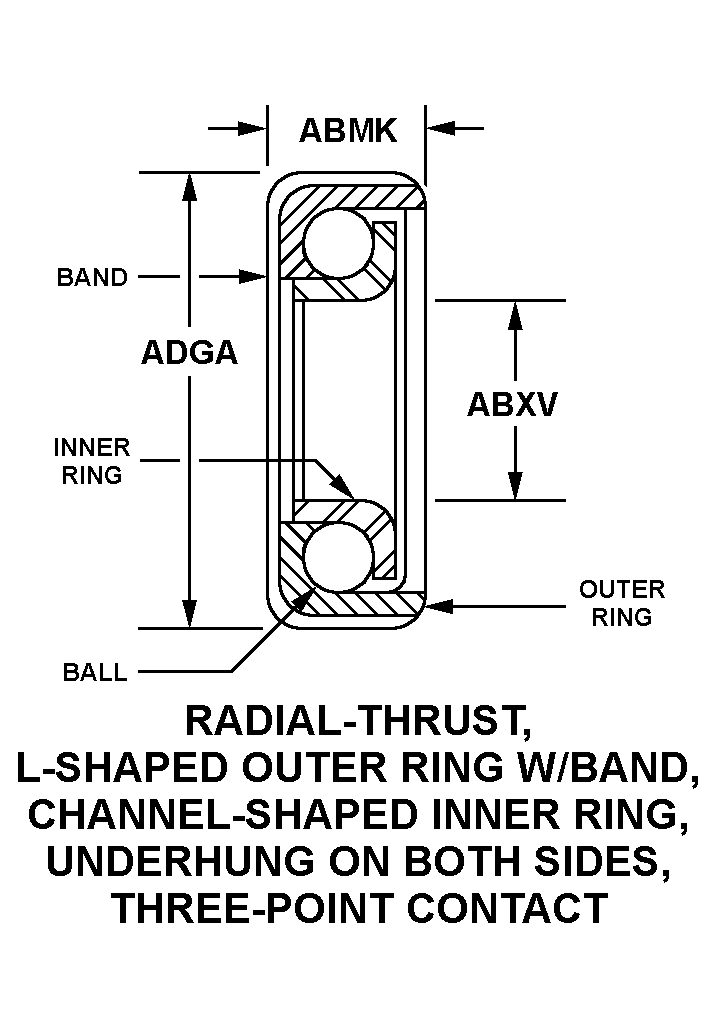

RADIAL-THRUST, L-SHAPED OUTER RING WITH BAND, CHANNEL-SHAPED INNER RING UNDERHUNG ON BOTH SIDES, THREE-POINT CONTACT

Cross Reference | NSN 3110-00-151-8176
Part Number Cage Code Manufacturer
51771041ALTRA INDUSTRIAL MOTION CORP.DIV BOSTON GEAR
70969221450ARMY WEAPONS COMMANDATTN AMSWE-REE-S
53263323705FRUEHAUF CORP
51723705FRUEHAUF CORP
SRT807421760SCHATZ BEARING CORPORATION
CS149821760SCHATZ BEARING CORPORATION
51743766SKF INDUSTRIES INCNICE BEARING PRODUCTS DIV
51752676SKF USA INC.
S45368679500WESTINGHOUSE ELECTRIC CORP
S45368665054WESTINGHOUSE ELECTRIC CORPPOWER GENERATION-GENERATOR DIV
Technical Data | NSN 3110-00-151-8176
Characteristic Specifications
STYLE DESIGNATOR RADIAL-THRUST, L-SHAPED OUTER RING WITH BAND, CHANNEL-SHAPED INNER RING UNDERHUNG ON BOTH SIDES, THREE-POINT CONTACT
OVERALL WIDTH0.5837 INCHES MINIMUM AND 0.6037 INCHES MAXIMUM
BORE DIAMETER1.2500 INCHES MINIMUM AND 1.2550 INCHES MAXIMUM
OVERALL OUTSIDE DIAMETER2.3075 INCHES MINIMUM AND 2.3175 INCHES MAXIMUM
BORE SHAPE STRAIGHT
SURFACE FINISH UNGROUND
LOAD DIRECTION ANGULAR
CONTACT ANGLE25.0 DEGREES MINIMUM
SPECIAL FEATURESEITHER OUTER OR INNER RING COMPOSED OF TWO OR MORE PARTS ALSO ONE FACE OF OUTER RING FORMS LIP AND INNER RING STAMPED FORMING AN ANGLE OF CONTACT AND LIP ON SIDE OPPOSITE OUTER RING LIP
