Part Details | ANNULAR BALL BEARING
3110-00-151-8266 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: WC7038A, WC7038AX1A, WC7038A, WC7038AX1A, WC7038AX1A, WC7038A, 3110-00-151-8266, 00-151-8266, 3110001518266, 001518266
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1961 | 00-151-8266 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

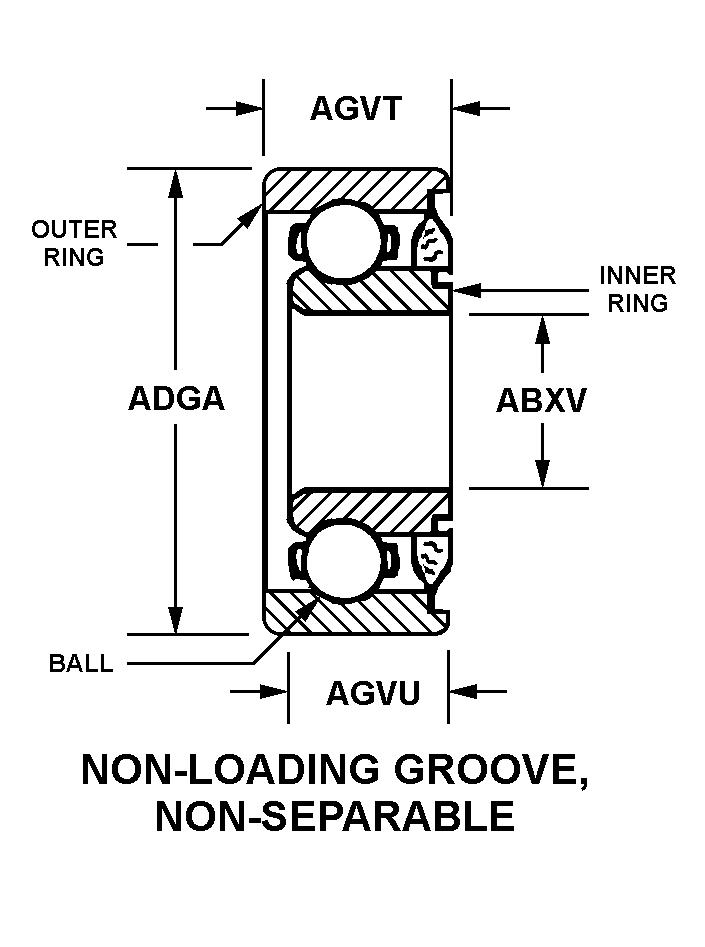

NON-LOADING GROOVE, NON-SEPARABLE
Cross Reference | NSN 3110-00-151-8266
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WC7038A | 24617 | GENERAL MOTORS CORP |
| WC7038AX1A | 24617 | GENERAL MOTORS CORP |
| WC7038A | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| WC7038AX1A | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| WC7038AX1A | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| WC7038A | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
Technical Data | NSN 3110-00-151-8266
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | NON-LOADING GROOVE, NON-SEPARABLE |
| BORE DIAMETER | 8.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 22.0 MILLIMETERS NOMINAL |
| OUTER RING WIDTH | 0.4060 INCHES NOMINAL |
| INNER RING WIDTH | 0.3860 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SHIELD QUANTITY | 1 |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| SPECIAL FEATURES | SEAL REMOVED ALSO SLOT 0.0937 IN. DEEP BY 0.1875 IN W ON FLUSH FACE SIDE OF OUTER RING |
