Part Details | CYLINDRICAL ROLLER BEARING
3110-00-155-7404 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: SK20134, SK201-34, SK20134, SK201-34, 827830, R1206TS, R1206T, R1206TS, R1206TS, R1206T, 3110-00-155-7404, 00-155-7404, 3110001557404, 001557404
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1961 | 00-155-7404 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

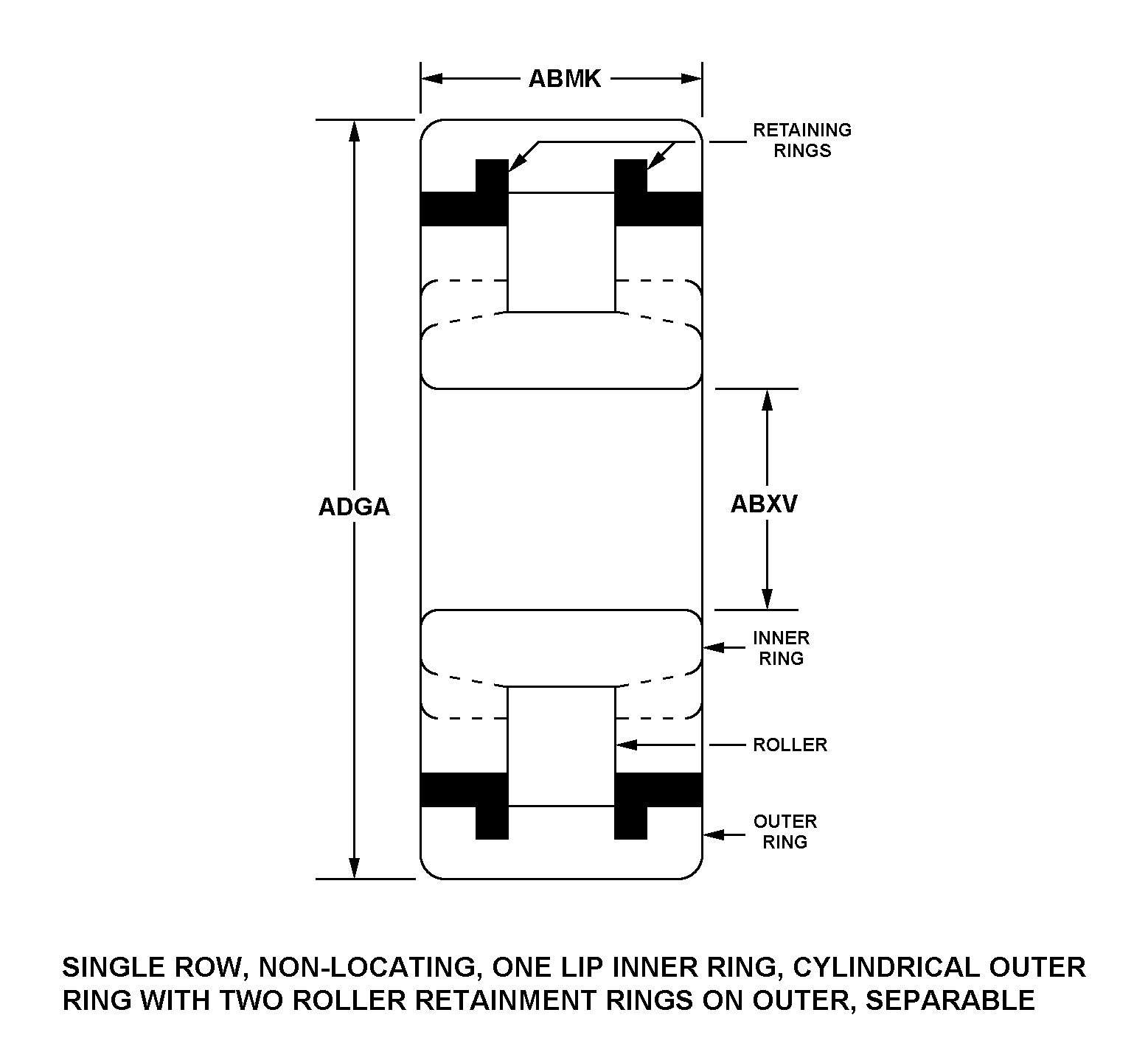

SINGLE ROW, NON-LOCATING, ONE LIP INNER RING, CYLINDRICAL OUTER RING WITH TWO ROLLER RETAINMENT RINGS ON OUTER,SEPARABLE
Cross Reference | NSN 3110-00-155-7404
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SK201-34 | 12603 | CLARK EQUIPMENT CO |
| SK201-34 | 89749 | CLARK MATERIAL HANDLING COMPANY |
| 827830 | 61465 | GARWOOD/FELLER INCGARWOOD WINCH DIV |
| R1206TS | 24617 | GENERAL MOTORS CORP |
| R1206T | 24617 | GENERAL MOTORS CORP |
| R1206TS | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| R1206TS | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| R1206T | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
Technical Data | NSN 3110-00-155-7404
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE ROW, NON-LOCATING, ONE LIP INNER RING, CYLINDRICAL OUTER RING WITH TWO ROLLER RETAINMENT RINGS ON OUTER,SEPARABLE |
| OVERALL WIDTH | 16.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 30.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 62.0 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
