Part Details | ANNULAR BALL BEARING
3110-00-156-3449 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: FFB171, 3110-00-156-3449, 00-156-3449, 3110001563449, 001563449
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-156-3449 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

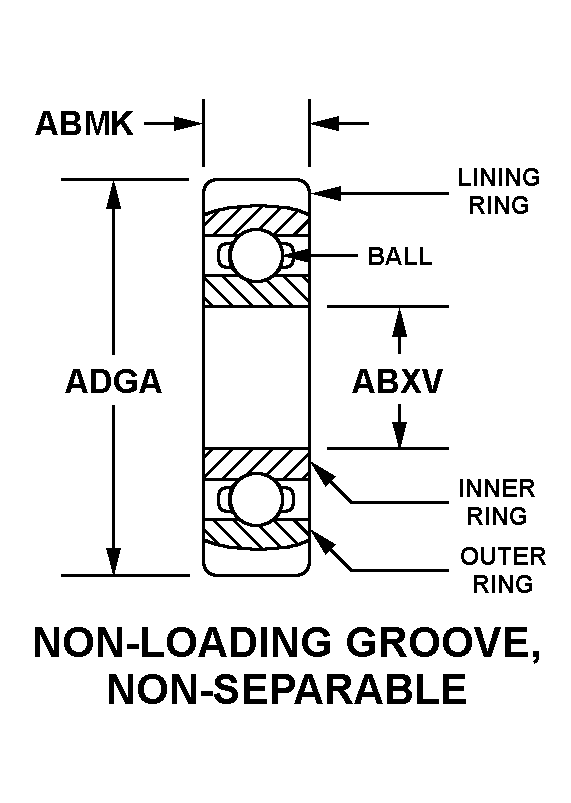

NON-LOADING GROOVE, NON-SEPARABLE
Cross Reference | NSN 3110-00-156-3449
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FFB171 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 3110-00-156-3449
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | NON-LOADING GROOVE, NON-SEPARABLE |
| BORE DIAMETER | 12.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 32.00 MILLIMETERS NOMINAL |
| OUTER RING WIDTH | 0.5000 INCHES NOMINAL |
| INNER RING WIDTH | 0.6060 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-18709 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SEAL QUANTITY | 2 |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 117 TYPE AND 2 CLASS |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY BALL BEARING STYLE |
