Part Details | ROD END PLAIN BEARING
3120-00-056-6113 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Alternate Parts: 6431551, 6-43155-1, 6431551, 6-43155-1, 3120-00-056-6113, 00-056-6113, 3120000566113, 000566113
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-056-6113 | 13209 ( BEARING, PLAIN, ROD END ) |
REFERENCE DRAWINGS & PICTURES
EXTERNALLY THREADED

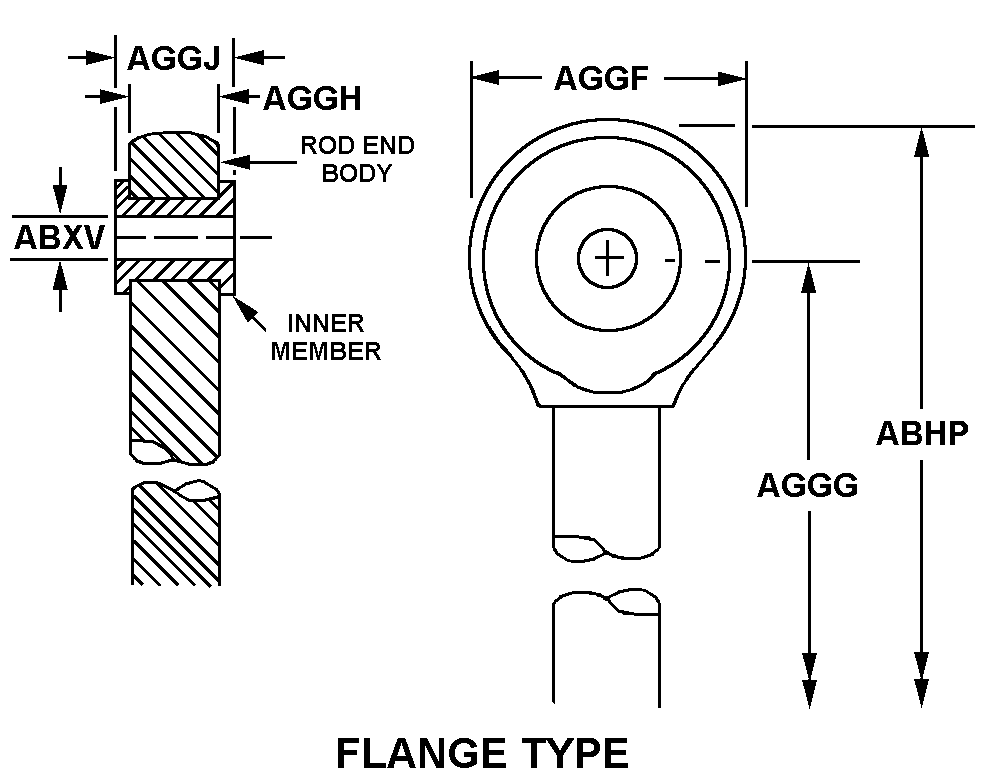

FLANGE TYPE
Cross Reference | NSN 3120-00-056-6113
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6-43155-1 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN AEROSPACE |
| 6-43155-1 | 0JRC1 | NORTHROP GRUMMAN TECHNICAL SERVICES,INC. |
Technical Data | NSN 3120-00-056-6113
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FLANGE TYPE |
| OVERALL LENGTH | 2.4500 INCHES NOMINAL |
| BORE DIAMETER | 0.4375 INCHES NOMINAL |
| OUTER MEMBER OUTSIDE DIAMETER | 0.8120 INCHES NOMINAL |
| BORE CENTER TO SHANK END DISTANCE | 2.0500 INCHES NOMINAL |
| OUTER MEMBER WIDTH | 0.6100 INCHES NOMINAL |
| SHANK STYLE | EXTERNALLY THREADED |
| SHANK THREAD LENGTH | 1.4500 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| THREAD DIAMETER | 0.562 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
