Part Details | SLEEVE BEARING HALF
3120-00-065-4384 A half of a two-piece split type BEARING, SLEEVE.
Alternate Parts: 195860M12, 195860M12, 3120-00-065-4384, 00-065-4384, 3120000654384, 000654384
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-065-4384 | 22210 ( BEARING HALF, SLEEVE ) |
REFERENCE DRAWINGS & PICTURES

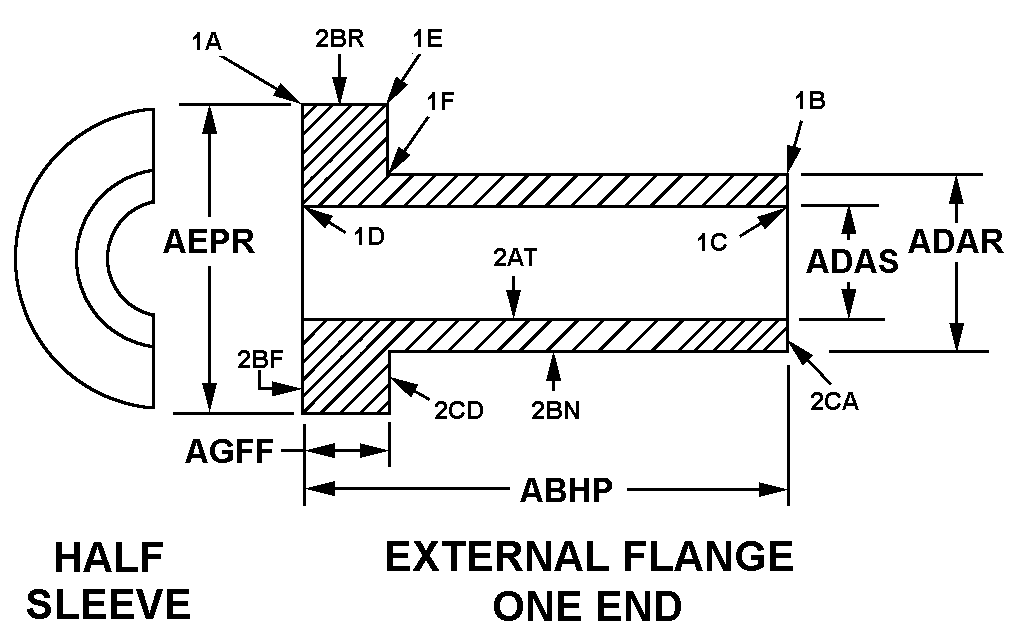

HALF SLEEVE, EXTERNAL FLANGE ONE END
Cross Reference | NSN 3120-00-065-4384
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 195860M12 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT& WHITNEY CANADA CORP. |
| 195860M12 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 3120-00-065-4384
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HALF SLEEVE, EXTERNAL FLANGE ONE END |
| OVERALL LENGTH | 3.7288 INCHES MINIMUM AND 3.7320 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 2.9065 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 2.7619 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 3.3960 INCHES MINIMUM AND 3.4160 INCHES MAXIMUM |
| FLANGE WIDTH | 0.1130 INCHES MINIMUM AND 0.1160 INCHES MAXIMUM |
| ANTIROTATION/LUBRICATION TYPE AND QUANTITY | 4 HOLE |
| PRECIOUS MATERIAL | SILVER |
