Part Details | ROD END PLAIN BEARING
3120-00-066-0860 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Alternate Parts: 32456203, 32-45620-3, 3120-00-066-0860, 00-066-0860, 3120000660860, 000660860
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-066-0860 | 13209 ( BEARING, PLAIN, ROD END ) |

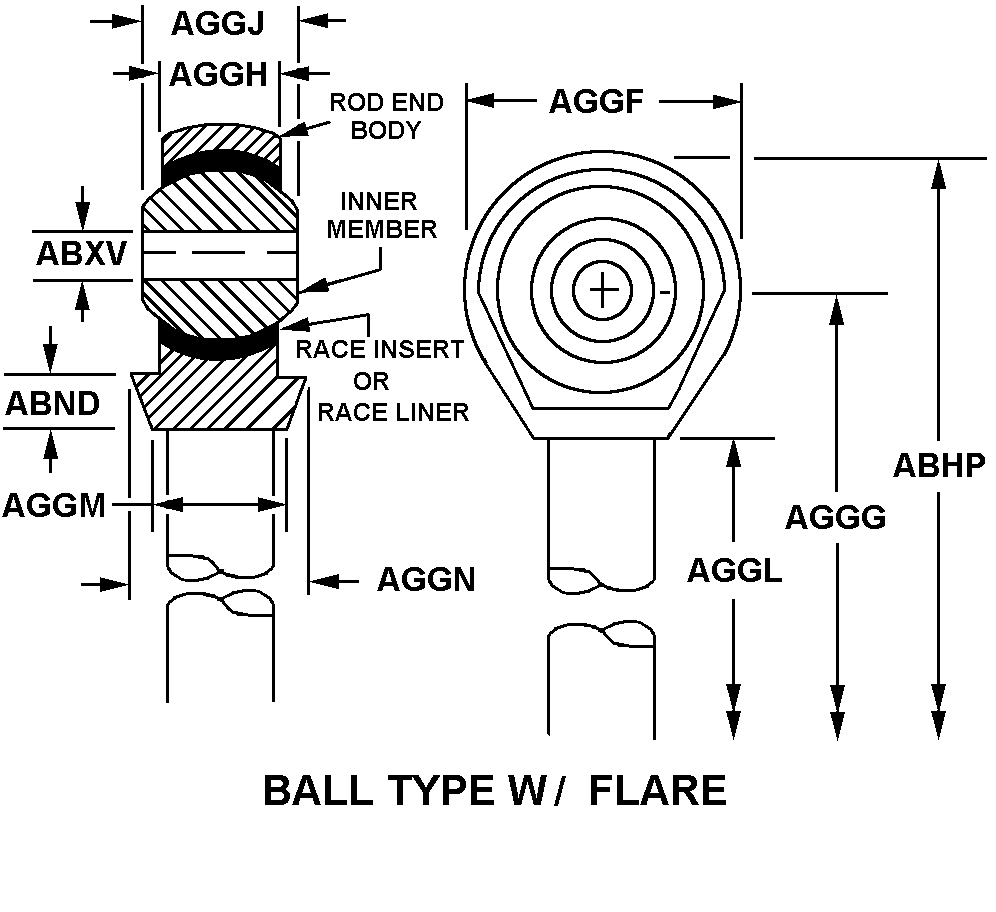

REFERENCE DRAWINGS & PICTURES
EXTERNALLY THREADED
BALL TYPE WITH FLARE
Cross Reference | NSN 3120-00-066-0860
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 32-45620-3 | 76301 | BOEING COMPANY, THEDBA BOEING |
Technical Data | NSN 3120-00-066-0860
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BALL TYPE WITH FLARE |
| SHANK STYLE | EXTERNALLY THREADED |
