Part Details | ROD END PLAIN BEARING
3120-00-067-7643 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Alternate Parts: TR10N, TR10N, 3120-00-067-7643, 00-067-7643, 3120000677643, 000677643
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUN 29, 1967 | 00-067-7643 | 13209 ( BEARING, PLAIN, ROD END ) |
REFERENCE DRAWINGS & PICTURES

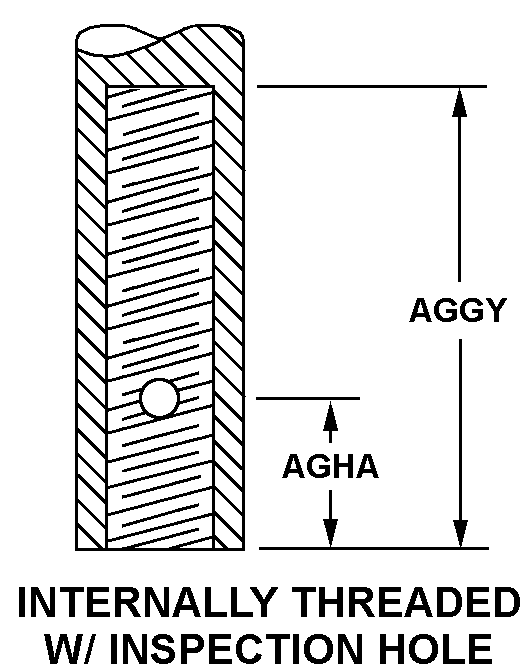

INTERNALLY THREADED W/INSPECTION HOLE
SHOULDERED BALL TYPE
Cross Reference | NSN 3120-00-067-7643
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TR10N | 02695 | MORSE INDUSTRIAL CORPSEALMASTER BEARING DIV |
| TR10N | 57448 | STEPHENS-ADAMSON INCA SUB OF ALLIS-CHALMERS CORP |
Technical Data | NSN 3120-00-067-7643
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SHOULDERED BALL TYPE |
| OVERALL LENGTH | 3.2500 INCHES NOMINAL |
| BORE DIAMETER | 0.6245 INCHES MINIMUM AND 0.6265 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 1.4900 INCHES MINIMUM AND 1.5100 INCHES MAXIMUM |
| BORE CENTER TO SHANK END DISTANCE | 2.4850 INCHES MINIMUM AND 2.5150 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.5570 INCHES MINIMUM AND 0.5670 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.7450 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |
| SHANK END TO SHOULDER LENGTH | 1.7400 INCHES MINIMUM AND 1.7600 INCHES MAXIMUM |
| LUBRICATION MATERIAL | LUBRICATING OIL |
| STATIC RADIAL LOAD RATING | 7000 POUNDS |
| SHANK STYLE | INTERNALLY THREADED W/INSPECTION HOLE |
| SHANK THREAD LENGTH | 1.5000 INCHES NOMINAL |
| INSPECTION HOLE CENTER TO END DISTANCE | 0.7500 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| THREAD DIAMETER | 0.625 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| FEATURES PROVIDED | EXTERNAL LUBRICATION FITTING |
