Part Details | PAVING BREAKER MOIL POINT
3820-01-114-9356 A straight, solid metal tool with a shank at one end to fit the chuck of a paving breaker, the opposite end processed to a sharp point. Used for penetrating or breaking up of hard materials such as asphalt, concrete, and other rock-like formations.
Alternate Parts: 3PBA2P18, 50055524, 3PBA2P18, 6165302, 616530-2, 3PEA2P18, 3PEA2P-18, 1020, 3820-01-114-9356, 01-114-9356, 3820011149356, 011149356
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | JUN 25, 1981 | 01-114-9356 | 16801 ( MOIL POINT, PAVING BREAKER ) |
REFERENCE DRAWINGS & PICTURES

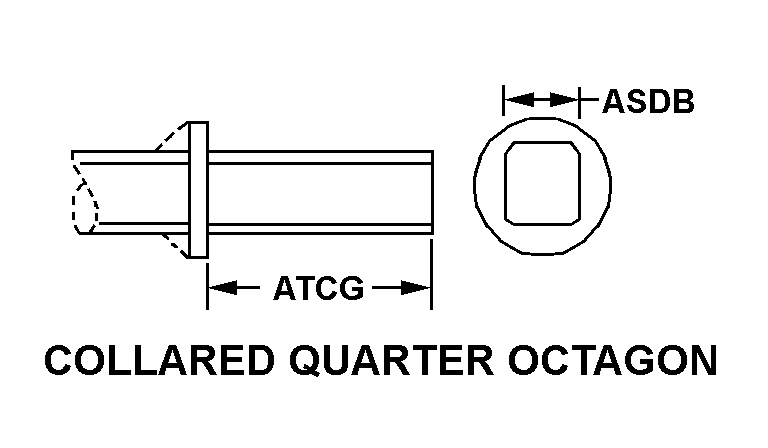

COLLARED QUARTER OCTAGON
Cross Reference | NSN 3820-01-114-9356
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3PBA2P18 | 30760 | INGERSOLL RAND CO |
| 50055524 | 57576 | INGERSOLL-RAND COCONSTRUCTION EQUIPMENT GROUP |
| 3PBA2P18 | 57576 | INGERSOLL-RAND COCONSTRUCTION EQUIPMENT GROUP |
| 616530-2 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 3PEA2P-18 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
| 1020 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 3820-01-114-9356
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SHANK STYLE | COLLARED QUARTER OCTAGON |
| WIDTH ACROSS FLATS | 1.125 INCHES NOMINAL |
| SHANK OVERALL LENGTH | 6.000 INCHES NOMINAL |
| OVERALL LENGTH | 24.000 INCHES NOMINAL |
