Part Details | PAVING BREAKER
3820-01-120-8113 A powered hand tool used for clay digging, breaking frozen ground, demolition of concrete paving, and the like. The unit has a non-rotating chuck through which a piston, or any other percussion system, imparts hammer-like blows to various types of accessories such as chisels, spades, picks, backfill tamping pads, and frost wedges. When provided with certain attachments, the unit may also be used as a sheeting and piling driver, drift bolt driver, or spike driver. See also DRILL, PNEUMATIC, DRIFTER; and DRILL, PNEUMATIC, SINKER.
Alternate Parts: PB85AS2, BR40S, MILB467, MIL-B-467, 5196111, 519611-1, MX90, 3820-01-120-8113, 01-120-8113, 3820011208113, 011208113
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | OCT 23, 1981 | 01-120-8113 | 13600 ( BREAKER, PAVING ) |
REFERENCE DRAWINGS & PICTURES

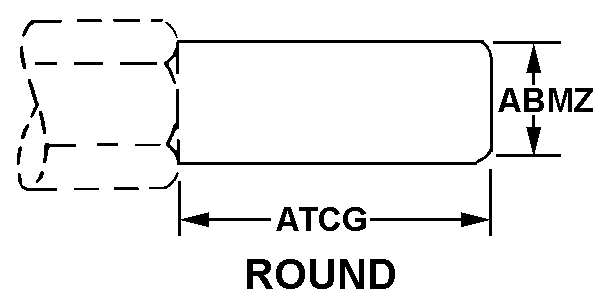

ROUND
DOUBLE END AND CENTER GRIP WITH LEVER
Cross Reference | NSN 3820-01-120-8113
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PB85AS2 | 88032 | CURTISS-WRIGHT ELECTRO-MECHANICALCORPORATION |
| BR40S | 88032 | CURTISS-WRIGHT ELECTRO-MECHANICALCORPORATION |
| MIL-B-467 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 519611-1 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| MX90 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
Technical Data | NSN 3820-01-120-8113
| Characteristic | Specifications |
|---|---|
| PRIME MOVER TYPE | PNEUMATIC MOTOR |
| HANDLE STYLE | DOUBLE END AND CENTER GRIP WITH LEVER |
| ACCESSORY COMPONENTS | DEMOLITION TOOL CHUCK |
| TOOL RETAINER TYPE | D ANY ACCEPTABLE |
| SHANK STYLE | ROUND |
| DIAMETER | 1.250 INCHES NOMINAL |
| SHANK OVERALL LENGTH | 6.000 INCHES NOMINAL |
| WEIGHT | PA84.000 |
| CONVERSION FEATURE FOR SINKER DRILL OPERATION | NOT INCLUDED |
