Part Details | PAVING BREAKER CHISEL
3820-01-282-8475 A straight, solid metal tool with a shank at one end to fit the chuck of a paving breaker, the opposite end processed into a straight, flat blade, with a straight cutting edge. Used for cutting or shaping materials such as asphalt, stone, and other rock-like materials.
Alternate Parts: T2168, HS2168, T2168, 3820-01-282-8475, 01-282-8475, 3820012828475, 012828475
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | JUL 23, 1988 | 01-282-8475 | 16799 ( CHISEL, PAVING BREAKER ) |
REFERENCE DRAWINGS & PICTURES

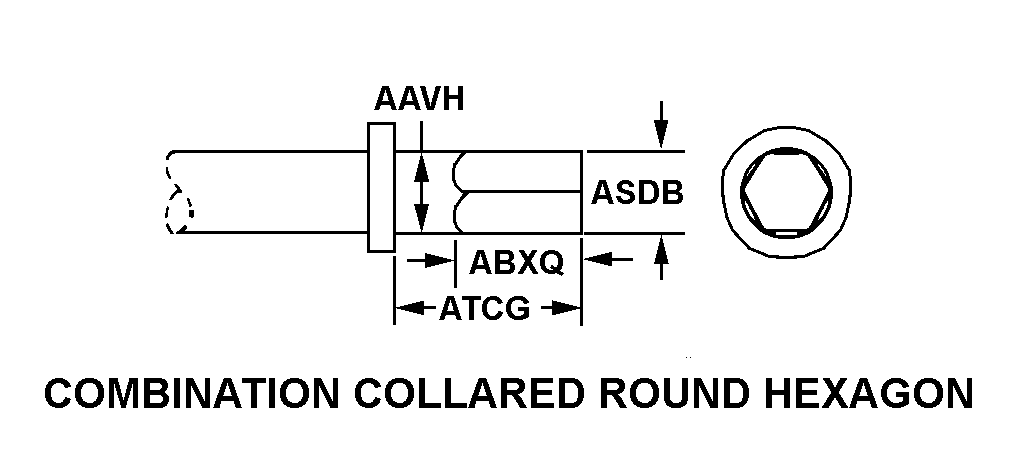

COMBINATION COLLARED ROUND HEXAGON
CHISEL, PAVING BREAKER
Cross Reference | NSN 3820-01-282-8475
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T2168 | 57064 | BOSCH ROBERT POWER TOOL CORP |
| HS2168 | 57064 | BOSCH ROBERT POWER TOOL CORP |
| T2168 | 53867 | ROBERT BOSCH LLC |
Technical Data | NSN 3820-01-282-8475
| Characteristic | Specifications |
|---|---|
| SHANK STYLE | COMBINATION COLLARED ROUND HEXAGON |
| WIDTH ACROSS FLATS | 1.125 INCHES NOMINAL |
| BLADE STYLE | CHISEL, PAVING BREAKER |
| BLADE WIDTH | 3.000 INCHES NOMINAL |
| OVERALL LENGTH | 22.500 INCHES NOMINAL |
| SPECIAL FEATURES | INTERNAL LOCK FOR BOSCH HAMMER |
