Part Details | FORK LIFT TRUCK
3930-00-181-3113 A self-propelled, wheeled vehicle, equipped with power driven front or side loading fork, type elevating unit(s). The elevating unit(s) may extend and retract to provide a reaching capability. It is primarily used for lifting, transporting, and stacking. For nonself-propelled, wheeled vehicles equipped with either manual or power driven elevating unit(s), see ELEVATOR, PORTABLE and TRUCK, LIFT, HAND. Excludes TRUCK, LIFT, PLATFORM.
Alternate Parts: WRNE3930328, WRNE3930-328, 3930-00-181-3113, 00-181-3113, 3930001813113, 001813113
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | JUL 17, 1970 | 00-181-3113 | 03197 ( TRUCK, LIFT, FORK ) |
REFERENCE DRAWINGS & PICTURES

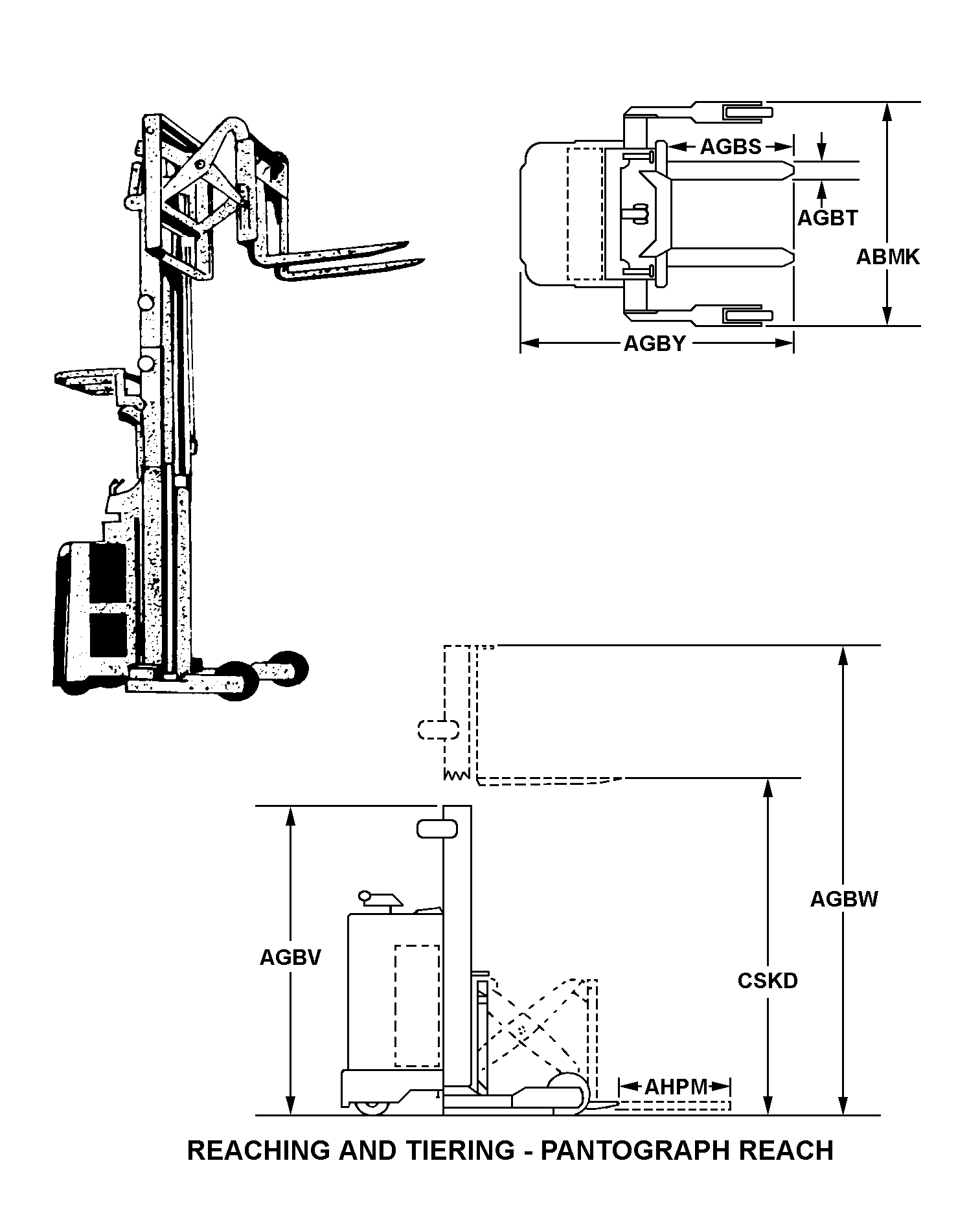

REACHING AND TIERING-PANTOGRAPH REACH
Cross Reference | NSN 3930-00-181-3113
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WRNE3930-328 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
Technical Data | NSN 3930-00-181-3113
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | REACHING AND TIERING-PANTOGRAPH REACH |
| OVERALL WIDTH | 44.500 INCHES NOMINAL |
| FORK LENGTH | 40.000 INCHES NOMINAL |
| FORK WIDTH | 5.000 INCHES NOMINAL |
| OVERALL HEIGHT WITH FORKS IN LOWEST POSITION | 114.000 INCHES NOMINAL |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| MAXIMUM LOAD RATING | 40000.000 POUNDS |
| LIFT MECHANISM TYPE | HYDRAULIC |
| LIFT ACTUATION METHOD | POWERED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | U.L. TYPE E |
| FEATURES PROVIDED | RADIO SUPPRESSED AND TELESCOPIC MAST |
| SPECIAL FEATURES | SOLID DRIVE WHEELS; 4 SOLID LOAD WHEELS |
| FORK LOAD CENTER DISTANCE | 24.000 INCHES NOMINAL |
| STORAGE AISLE MINIMUM WIDTH | 90.000 INCHES |
