Part Details | LINEAR ACTUATING CYLINDER ASSEMBLY
3930-00-200-8112 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.
Alternate Parts: P66948, C3154, 0H2C3154, B7812, 3930-00-200-8112, 00-200-8112, 3930002008112, 002008112
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | JAN 01, 1961 | 00-200-8112 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |
REFERENCE DRAWINGS & PICTURES

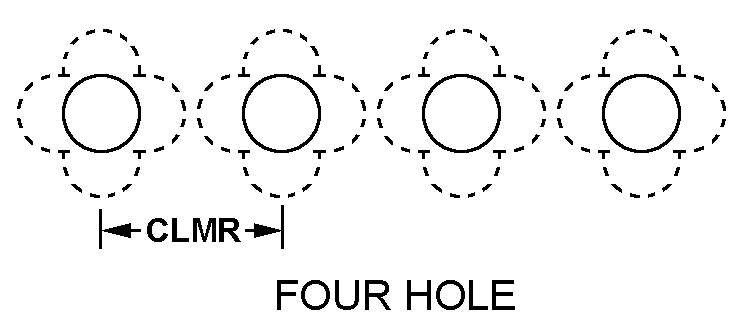

FOUR HOLE
TONGUE TYPE
TONGUE TYPE
GASKET SEAL
Cross Reference | NSN 3930-00-200-8112
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P66948 | 04285 | ATHEY PRODUCTS CORP |
| C3154 | 95953 | HYCO INC |
| 0H2C3154 | 16662 | LIFT PARTS MFG CO INCDIV OF ECHLIN MFG CO THE |
| B7812 | 46717 | PETTIBONE LLC |
Technical Data | NSN 3930-00-200-8112
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | DOUBLE ACTING SINGLE CYLINDER |
| EXTENDED LENGTH | 66.500 INCHES NOMINAL |
| COMPRESSED LENGTH | 44.500 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| BORE DIAMETER | 3.750 INCHES NOMINAL |
| OVERALL WIDTH | 5.000 INCHES NOMINAL |
| OVERALL HEIGHT | 6.250 INCHES NOMINAL |
| FIRST PISTON ROD END STYLE | TONGUE TYPE |
| FIRST END HOLE DIAMETER | 1.219 INCHES |
| FIRST END THICKNESS AT MOUNTING HOLES | 0.750 INCHES |
| FIRST END FORK WIDTH | 3.000 INCHES |
| FIRST END TONGUE LENGTH | 10.375 INCHES |
| MOUNTING TYPE AND LOCATION | TONGUE CYLINDER HEAD END |
| MOUNTING PROVISION | UNTHREADED MOUNTING HOLES |
| MOUNTING PROVISION ARRANGEMENT STYLE | FOUR HOLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING PROVISIONS | 11.625 INCHES NOMINAL |
| MOUNTING FACILITY DIAMETER | 1.281 INCHES NOMINAL |
| PORT STYLE | GASKET SEAL |
| PORT THREAD SERIES DESIGNATOR | NPT |
| PORT THREAD DIAMETER | 0.500 INCHES |
| PORT NOMINAL PIPE THREAD SIZE | 0.500 INCHES |
| FSC APPLICATION DATA | TRUCK,LIFT,FORK |
