Part Details | PLATFORM LIFT TRUCK
3930-00-978-1099 A self-propelled, wheeled vehicle equipped with an elevating type platform. The platform elevating unit may be power-driven. Primarily designed to be used in conjunction with skid platforms (skids) for handling of skid loaded materials. Excludes TRUCK, LIFT, FORK.
Alternate Parts: SS300034239, SS3000-34239, 3930-00-978-1099, 00-978-1099, 3930009781099, 009781099
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | OCT 12, 1966 | 00-978-1099 | 03200 ( TRUCK, LIFT, PLATFORM ) |
REFERENCE DRAWINGS & PICTURES

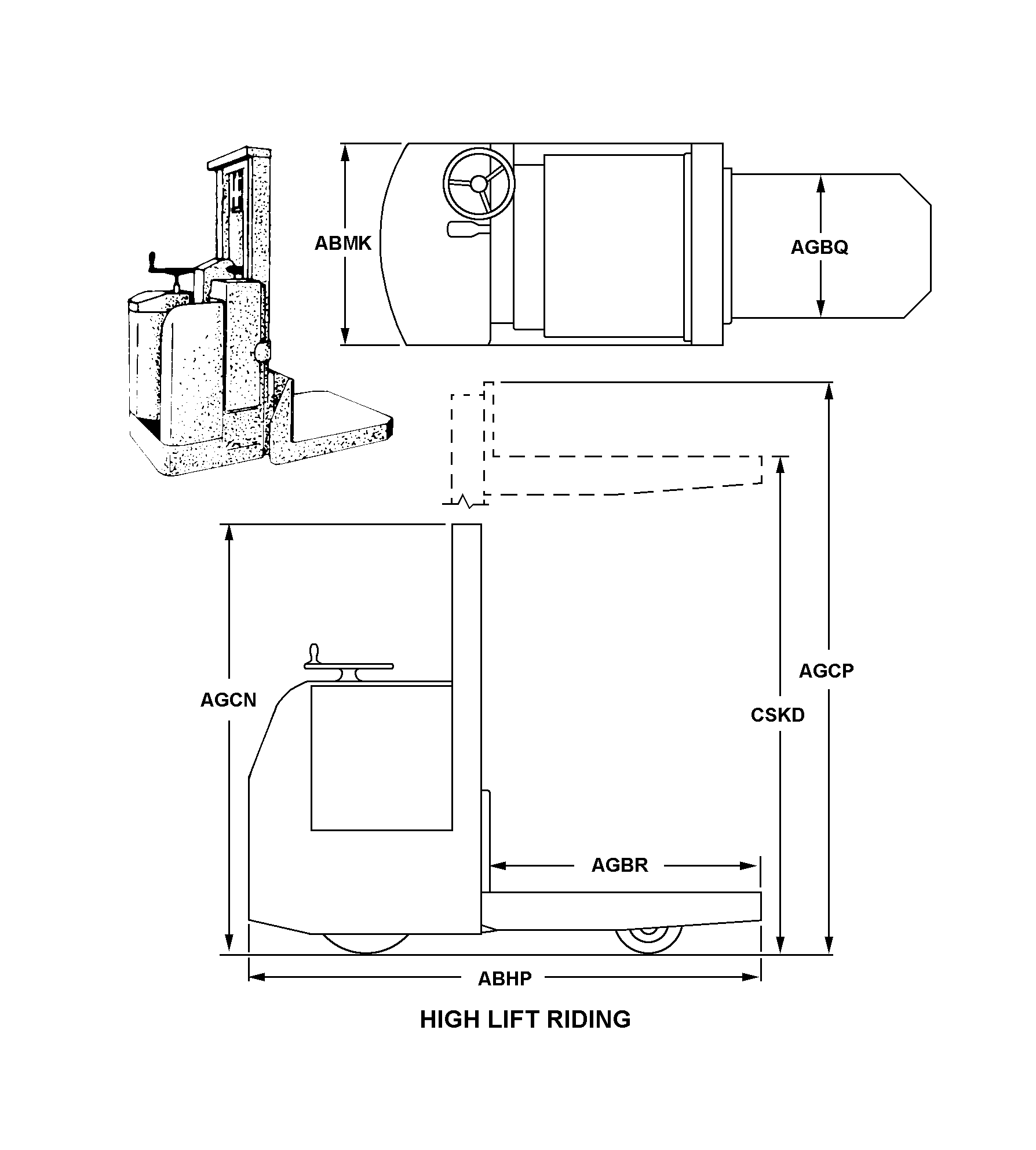

HIGH LIFT RIDING
Cross Reference | NSN 3930-00-978-1099
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SS3000-34239 | 06889 | BIG JOE MFG CO |
Technical Data | NSN 3930-00-978-1099
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HIGH LIFT RIDING |
| OVERALL LENGTH | 100.000 INCHES NOMINAL |
| OVERALL WIDTH | 38.000 INCHES NOMINAL |
| LOAD PLATFORM WIDTH | 38.000 INCHES NOMINAL |
| LOAD PLATFORM LENGTH | 64.500 INCHES NOMINAL |
| OVERALL HEIGHT WITH PLATFORM IN LOWEST POSITION | 108.000 INCHES NOMINAL |
| OVERALL HEIGHT WITH PLATFORM IN HIGHEST POSITION | 242.000 INCHES NOMINAL |
| LIFT HEIGHT OF FORKS | 168.000 INCHES MAXIMUM |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| BATTERY COMPARTMENT LENGTH | 13.187 INCHES NOMINAL |
| BATTERY COMPARTMENT WIDTH | 36.000 INCHES NOMINAL |
| BATTERY COMPARTMENT DEPTH | 30.875 INCHES NOMINAL |
| VEHICULAR TURN RADIUS | 84.000 INCHES NOMINAL |
| MAXIMUM LOAD RATING | 3000.000 POUNDS |
| LIFT MECHANISM TYPE | HYDRAULIC |
| LIFT ACTUATION METHOD | POWERED |
| TRANSMISSION TYPE | MANUAL |
| PRIME MOVER MANUFACTURER CODE AND MODEL NUMBER | 77470-MSU4003 |
| FEATURES PROVIDED | TELESCOPIC MAST |
| MINIMUM LOAD CARRYING SURFACE HEIGHT | 12.000 INCHES |
