NSN 3930-01-008-7044

Part Details | FORK LIFT TRUCK

3930-01-008-7044 A self-propelled, wheeled vehicle, equipped with power driven front or side loading fork, type elevating unit(s). The elevating unit(s) may extend and retract to provide a reaching capability. It is primarily used for lifting, transporting, and stacking. For nonself-propelled, wheeled vehicles equipped with either manual or power driven elevating unit(s), see ELEVATOR, PORTABLE and TRUCK, LIFT, HAND. Excludes TRUCK, LIFT, PLATFORM.

Alternate Parts: SC30, SC-30, 3930-01-008-7044, 01-008-7044, 3930010087044, 010087044

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
39AUG 29, 197501-008-704403197 ( TRUCK, LIFT, FORK )
REFERENCE DRAWINGS & PICTURES

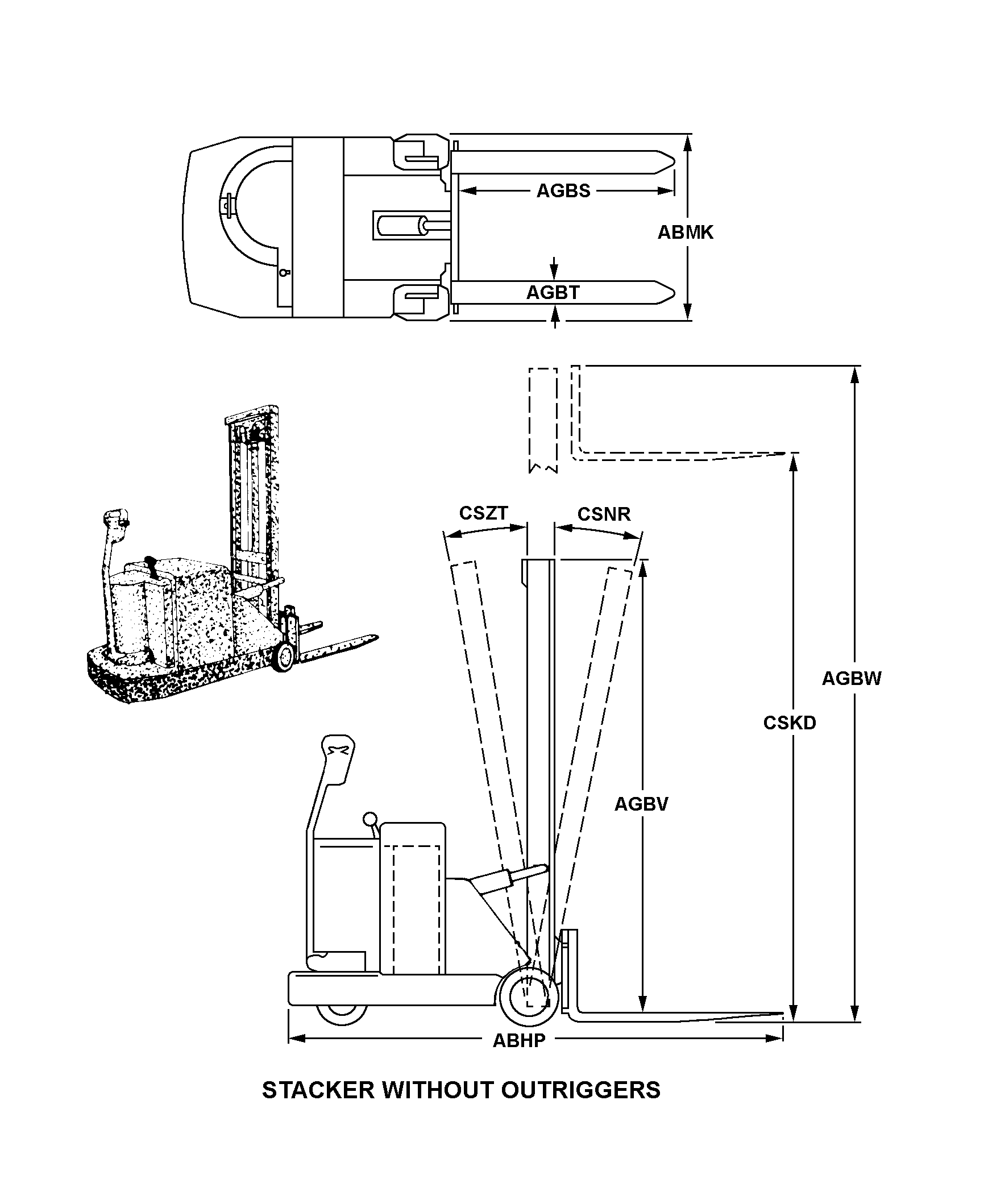

STACKER WITHOUT OUTRIGGERS

Cross Reference | NSN 3930-01-008-7044
Part Number Cage Code Manufacturer
SC-3093880PRIME-MOVER CO THE
Technical Data | NSN 3930-01-008-7044
Characteristic Specifications
STYLE DESIGNATOR STACKER WITHOUT OUTRIGGERS
OVERALL LENGTH111.500 INCHES NOMINAL
OVERALL WIDTH33.750 INCHES NOMINAL
FORK LENGTH42.000 INCHES NOMINAL
FORK WIDTH4.000 INCHES NOMINAL
OVERALL HEIGHT WITH FORKS IN LOWEST POSITION71.000 INCHES NOMINAL
OVERALL HEIGHT WITH FORKS IN HIGHEST POSITION115.250 INCHES NOMINAL
LIFT HEIGHT OF FORKS100.000 INCHES MAXIMUM
BOOM FORWARD TILT ANGLE3.0 DEGREES NOMINAL
BOOM BACKWARD TILT ANGLE8.0 DEGREES NOMINAL
PRIME MOVER TYPE ELECTRIC MOTOR
BATTERY COMPARTMENT LENGTH31.188 INCHES NOMINAL
BATTERY COMPARTMENT WIDTH13.750 INCHES NOMINAL
BATTERY COMPARTMENT DEPTH24.625 INCHES NOMINAL
MAXIMUM LOAD RATING3000.000 POUNDS
FORK/PLATFORM MAXIMUM FREE LIFT HEIGHT55.000 INCHES
LIFT MECHANISM TYPE HYDRAULIC
LIFT ACTUATION METHOD POWERED
STEERING TYPE CRAMPING
TRANSMISSION TYPE MANUAL
FEATURES PROVIDED TELESCOPIC MAST AND FORK SIDE SHIFT AND LOAD LEVELING DEVICE
SPECIAL FEATURESFORK/PLATFORM UPRIGHT BOOM
FORK LOAD CENTER DISTANCE24.000 INCHES NOMINAL
FORK SPREAD DISTANCE8.000 INCHES MINIMUM AND 36.000 INCHES MAXIMUM
STORAGE AISLE MINIMUM WIDTH111.000 INCHES
