Part Details | EYE SLING
3940-01-324-7928 An item made of strap, rope, webbing, or the like, specifically designed to hold securely something being hoisted, lowered, carried, dropped, or suspended. These items are characterized by a loop or eye at both ends. Excludes items of a single lentgth of material with fittings. See also WIRE ROPE ASSEMBLY, SINGLE LEG; FIBER ROPE ASSEMBLY, SINGLE LEG; and STRAP (as modified).
Alternate Parts: EE1202 2X10, EE1-202 2X10, 3940-01-324-7928, 01-324-7928, 3940013247928, 013247928
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | AUG 22, 1990 | 01-324-7928 | 40120 ( SLING, EYE ) |
REFERENCE DRAWINGS & PICTURES

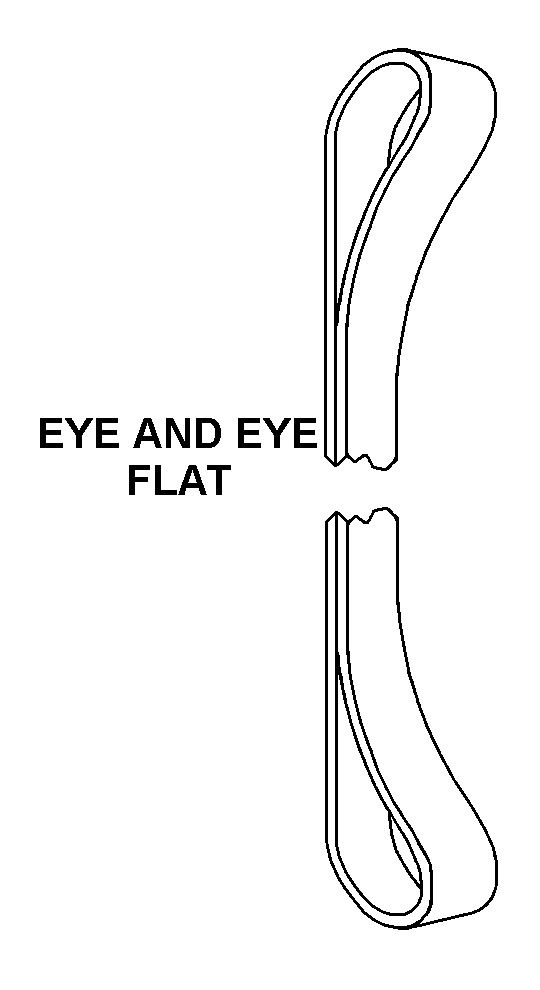

EYE AND EYE FLAT
Cross Reference | NSN 3940-01-324-7928
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EE1-202 2X10 | 23755 | LIFT-ALL COMPANY INC |
Technical Data | NSN 3940-01-324-7928
| Characteristic | Specifications |
|---|---|
| SLING MATERIAL TYPE | WEB STRAP |
| STYLE DESIGNATOR | EYE AND EYE FLAT |
| OVERALL LENGTH | 10.000 INCHES NOMINAL |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| LIFTING CAPACITY | 4000.0 POUNDS |
