Part Details | TACKLE BLOCK
3940-01-363-8267 A mechanical device, consisting of a pulley(s) or sheave(s) encased in a shell or frame which may be provided with a means such as a hook, eye, strap, screw, etc., by which it may be attached to an object. It is used to change direction of a running rope and/or to gain a mechanical advantage.
Alternate Parts: A3156798002, A3156798-002, 3940-01-363-8267, 01-363-8267, 3940013638267, 013638267
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | SEP 06, 1992 | 01-363-8267 | 06117 ( BLOCK, TACKLE ) |
REFERENCE DRAWINGS & PICTURES

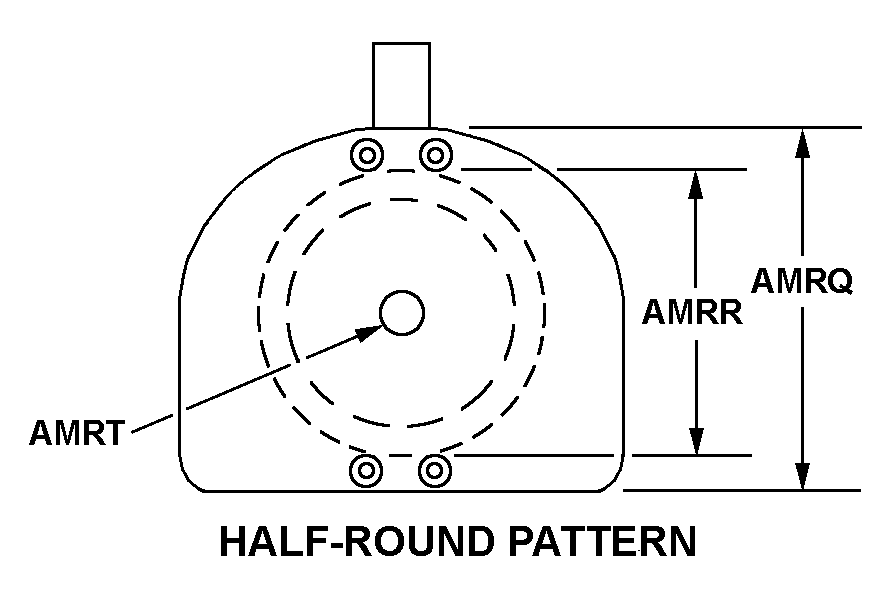

HALF-ROUND PATTERN
Cross Reference | NSN 3940-01-363-8267
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A3156798-002 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 3940-01-363-8267
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HALF-ROUND PATTERN |
| SHELL LENGTH | 2.500 INCHES NOMINAL |
| SHEAVE OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| BLOCK TYPE | REGULAR |
| MATERIAL AND LOCATION | STEEL, CORROSION RESISTING OVERALL |
| SURFACE TREATMENT AND LOCATION | ZINC PLATED OVERALL |
| SHEAVE QUANTITY | 1 |
| BEARING TYPE | ROLLER |
| SHEAVE BEARING LUBRICATION METHOD | SELF-LUBRICATED |
| TACKLE ACCOMMODATED TYPE | WIRE ROPE |
| MAXIMUM TACKLE DIAMETER ACCOMMODATED | 0.188 INCHES |
| TACKLE LOCKING DEVICE | NOT INCLUDED |
| ANTITOPPLING DEVICE | NOT INCLUDED |
| MAXIMUM LOAD RATING | 480.0 POUNDS |
