Part Details | EYE SLING
3940-01-380-1828 An item made of strap, rope, webbing, or the like, specifically designed to hold securely something being hoisted, lowered, carried, dropped, or suspended. These items are characterized by a loop or eye at both ends. Excludes items of a single lentgth of material with fittings. See also WIRE ROPE ASSEMBLY, SINGLE LEG; FIBER ROPE ASSEMBLY, SINGLE LEG; and STRAP (as modified).
Alternate Parts: RE162X106, RE1-62X10-6, 0641C002, 0641C00-2, 0641C002, 0641C00-2, 3940-01-380-1828, 01-380-1828, 3940013801828, 013801828
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | SEP 15, 1993 | 01-380-1828 | 40120 ( SLING, EYE ) |
REFERENCE DRAWINGS & PICTURES

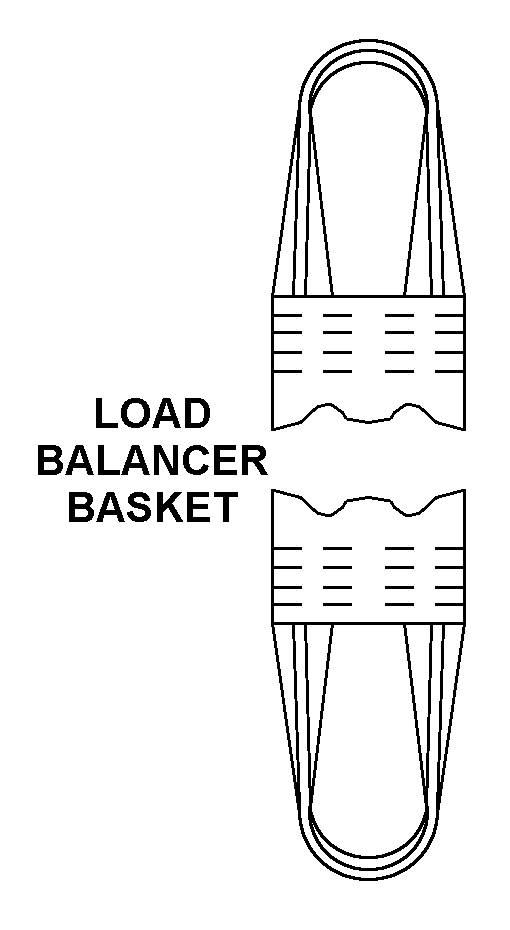

LOAD BALANCER BASKET
Cross Reference | NSN 3940-01-380-1828
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RE1-62X10-6 | 97924 | JAMES WALKER CO.,THE |
| 0641C00-2 | 03538 | LOCKHEED MARTIN CORPORATIONDIV RMS |
| 0641C00-2 | 54497 | MARTIN MARIETTA TECHNOLOGIES INCSUB OF MARTIN MARIETTA CORP |
Technical Data | NSN 3940-01-380-1828
| Characteristic | Specifications |
|---|---|
| SLING MATERIAL TYPE | WEB STRAP |
| STYLE DESIGNATOR | LOAD BALANCER BASKET |
| OVERALL LENGTH | 126.000 INCHES NOMINAL |
| OVERALL WIDTH | 4.000 INCHES NOMINAL |
| LIFTING CAPACITY | 9000.000 POUNDS |
| SPECIAL FEATURES | LIFTING CAPACITY 4500 VERTICAL AND 9000 BASKET |
