Part Details | CIRCULATING FAN
4140-00-833-5068 A nonpositive displacement mechanical device having an axial fan impeller with or without a protective enclosure. It is designed to circulate air under free-airflow conditions, and may be equipped with a baffle(s) to deflect the air radially. It may be suspended from the ceiling, attached to the wall, or stand on a horizontal surface.
Alternate Parts: 37086, AA1941, A-A-1941, WF97, W-F-97, 4140008335068, 4140-00-833-5068, 4140-00-833-5068, 00-833-5068, 4140008335068, 008335068
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | JAN 01, 1962 | 00-833-5068 | 30260 ( FAN, CIRCULATING ) |
REFERENCE DRAWINGS & PICTURES

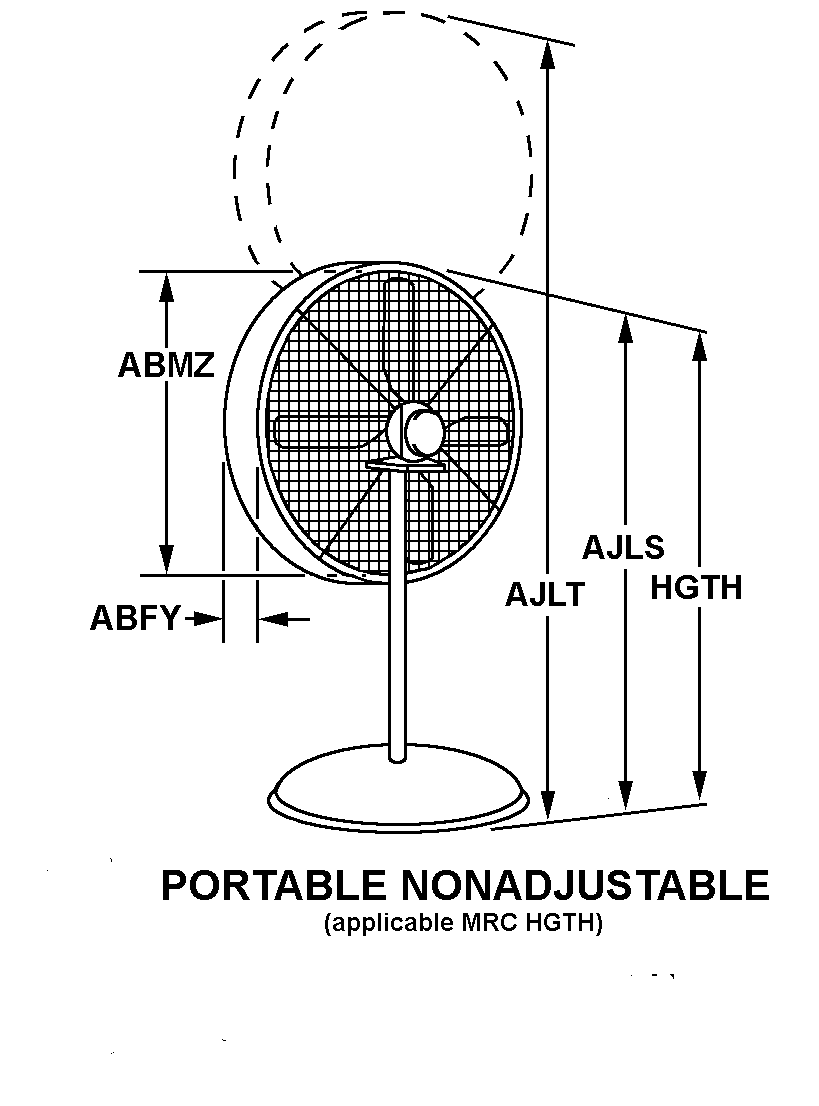

PORTABLE NONADJUSTABLE
Cross Reference | NSN 4140-00-833-5068
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 37086 | 00388 | AIRMASTER FAN COMPANYDBA AUTUMAIRE FAN |
| A-A-1941 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| W-F-97 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 4140-00-833-5068 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 4140-00-833-5068
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A PORTABLE NONADJUSTABLE |
| SHORTEST HEIGHT | 54.000 INCHES NOMINAL |
| EXTENDED HEIGHT | 84.000 INCHES NOMINAL |
| QUANTITY | 1 |
| DRIVE TYPE | DIRECT |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | TWO SPEED |
| INCLOSURE TYPE | FULLY INCLOSED |
| PRIME MOVER POWER RATING | 270.0 WATTS |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| PHASE | SINGLE |
| FREQUENCY IN HERTZ | 60.0 |
| AIR FLOW RATE | 8050.0 CUBIC FEET PER MINUTE MAXIMUM |
| STATIC PRESSURE AT SPECIFIED AIR FLOW RATE | 0.0 INCHES OF WATER |
| FLOW DIRECTION | OUTWARD |
| FEATURES PROVIDED | SAFETY IMPELLER GUARD |
| SPECIAL FEATURES | METAL BLADES |
