Part Details | CENTRIFUGAL FAN IMPELLER
4140-00-890-6447 An item with blades, vanes, or paddles equally spaced radially or horizontally around the periphery of a hub, rotor, or wheel. It is the rotating part of a centrifugal fan, electric motor, generator and the like which creates a flow of air or gas perpendicular to the axis of rotation.
Alternate Parts: LA22LA118, 4140-00-890-6447, 00-890-6447, 4140008906447, 008906447
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | APR 10, 1968 | 00-890-6447 | 10088 ( IMPELLER, FAN, CENTRIFUGAL ) |
REFERENCE DRAWINGS & PICTURES

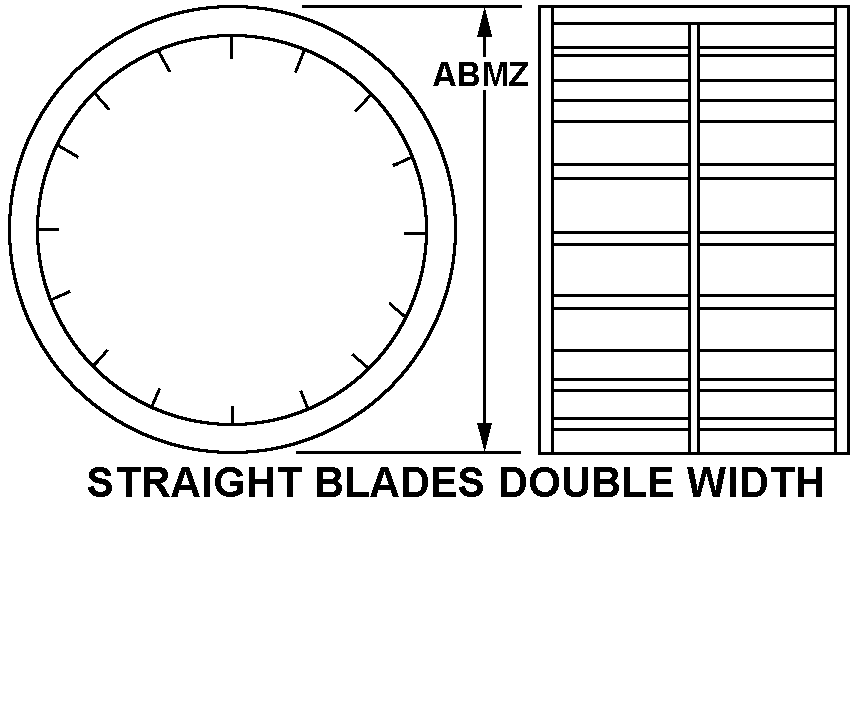

STRAIGHT BLADES DOUBLE WIDTH
Cross Reference | NSN 4140-00-890-6447
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LA22LA118 | 10855 | CARRIER CORPORATION |
Technical Data | NSN 4140-00-890-6447
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT BLADES DOUBLE WIDTH |
| WIDTH | 10.625 INCHES NOMINAL |
| DIAMETER | 11.000 INCHES NOMINAL |
| BLADE QUANTITY | 48 |
| ATTACHMENT METHOD | SETSCREW |
