Part Details | CENTRIFUGAL FAN
4140-01-039-9845 A nonpositive displacement mechanical device having a centrifugal fan impeller inclosed within a housing. It is designed to move air or gas over a wide range of volumes and pressures. The air or gas is drawn in axially and discharged radially or drawn in radially and discharged axially by centrifugal force through an outlet in the housing.
Alternate Parts: GEVB, GE-VB, GEVB3HP1500CFM, GEVB-3HP-1500CFM, GEVB, MVBGE, GEVB3HP1500CFM, GEVB-3HP-1500CFM, GEVB, GE-VB, 4140-01-039-9845, 01-039-9845, 4140010399845, 010399845
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | APR 28, 1977 | 01-039-9845 | 04254 ( FAN, CENTRIFUGAL ) |

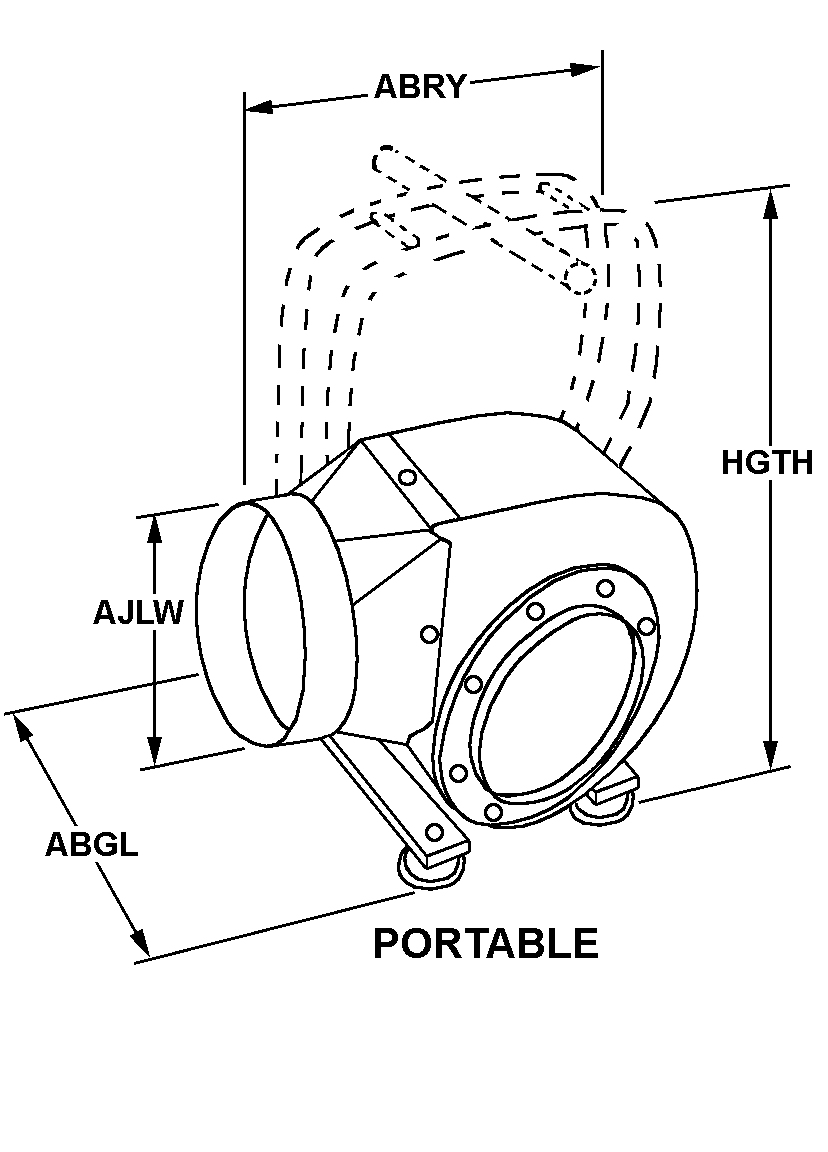

REFERENCE DRAWINGS & PICTURES
PORTABLE
Cross Reference | NSN 4140-01-039-9845
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GE-VB | 98905 | FEDERAL SIGNAL INTERNATIONAL FSC LTDDIV ELECTRICAL PRODUCTS |
| GEVB-3HP-1500CFM | 1FP59 | IKON SYSTEMS INC |
| GEVB | 1FP59 | IKON SYSTEMS INC |
| MVBGE | 06178 | PUREGAS LLC |
| GEVB-3HP-1500CFM | 06178 | PUREGAS LLC |
| GE-VB | 06178 | PUREGAS LLC |
Technical Data | NSN 4140-01-039-9845
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PORTABLE |
| OUTLET INSIDE DIAMETER | 8.000 INCHES NOMINAL |
| DRIVE TYPE | DIRECT |
| PRIME MOVER TYPE | GASOLINE ENGINE |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| PRIME MOVER POWER RATING | 3.000 HORSEPOWER |
| AIR FLOW RATE | 1500.000 CUBIC FEET PER MINUTE NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BASE |
| SPECIAL FEATURES | DESIGNED TO ACCEPT INLET AND OUTLET ATTACHMENTS FOR SUCTION OR EXHAUST APPLICATION |
